40-526 Series

Catalog

CONN IC DIP SOCKET ZIF 40POS TIN

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Housing Material	Termination	Features	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Post	Contact Finish - Mating

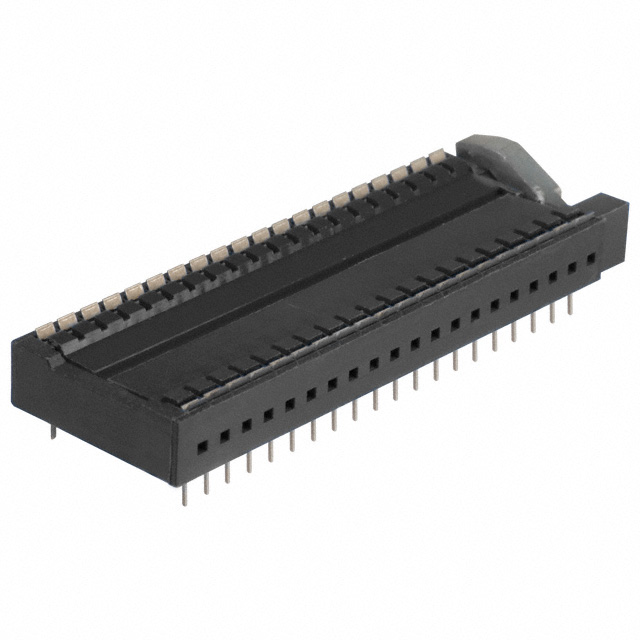

Aries Electronics 40-526-10	0.105 in	2.67 mm	UL94 V-0	3 A	10 Áin	0.25 çm	Through Hole	0.1 "	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Solder	Closed Frame	DIP ZIF (ZIP)	-55 C	105 ░C	Tin	40	0.1 in	2.54 mm	Beryllium Copper	0.25 µm	10 µin	Beryllium Copper
Aries Electronics 40-526-11	0.105 in	2.67 mm	UL94 V-0	3 A	10 Áin	0.25 çm	Through Hole	0.1 "	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Solder	Closed Frame	DIP ZIF (ZIP)	-55 C	125 °C	Gold	40	0.1 in	2.54 mm	Beryllium Copper	0.25 µm	10 µin	Beryllium Copper	Gold
