VNQ810 Series
Manufacturer: STMicroelectronics
Beta
⌘K

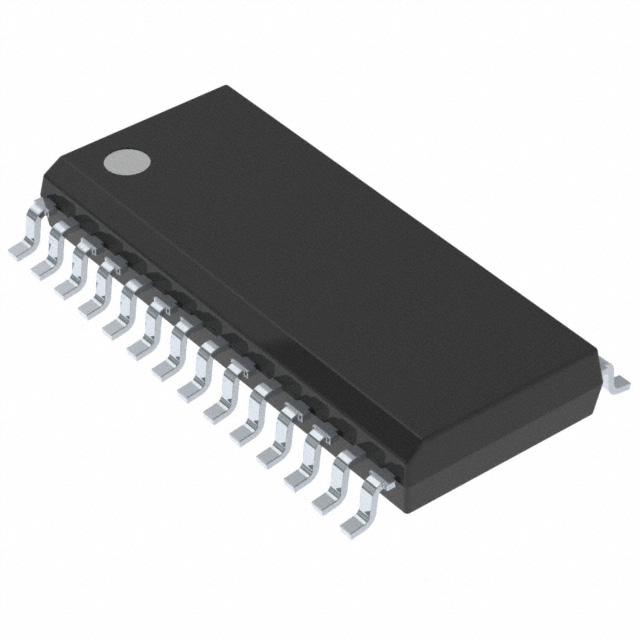

IC PWR DRIVER N-CHANNEL 1:1 28SO
| Part | Package / Case [custom] | Package / Case | Package / Case [custom] | Mounting Type | Input Type | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Ratio - Input:Output | Output Type | Supplier Device Package | Number of Outputs | Current - Output (Max) [Max] | Features | Fault Protection | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Output Configuration | Voltage - Supply (Vcc/Vdd) | Switch Type | Package / Case [y] | Package / Case [y] | Rds On (Typ) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 0.295 " | 28-SOIC | 7.5 mm | Surface Mount | Non-Inverting | 36 V | 5.5 V | 160 mOhm | 1:1 | N-Channel | 28-SO | 4 | 3.5 A | Auto Restart Status Flag | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | -40 °C | 150 °C | On/Off | High Side | Not Required | General Purpose | |||
 STMicroelectronics | 24-PowerBSOP | Surface Mount | Non-Inverting | 36 V | 5.5 V | 160 mOhm | 1:1 | N-Channel | PowerSSO-24 | 4 | 3.5 A | Auto Restart Status Flag | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | -40 °C | 150 °C | On/Off | High Side | Not Required | General Purpose | 0.295 in | 7.5 mm | |||
STMicroelectronics | 0.295 " | 28-SOIC | 7.5 mm | Surface Mount | Non-Inverting | 36 V | 5.5 V | 1:1 | N-Channel | 28-SO | 4 | 700 mA | Auto Restart Status Flag | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | -40 °C | 150 °C | On/Off | High Side | Not Required | General Purpose | 150 mOhm | |||
 STMicroelectronics | 0.295 " | 28-SOIC | 7.5 mm | Surface Mount | Non-Inverting | 36 V | 5.5 V | 1:1 | N-Channel | 28-SO | 4 | 700 mA | Auto Restart Status Flag | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | -40 °C | 150 °C | On/Off | High Side | Not Required | General Purpose | 150 mOhm |
