DF9A Series

Catalog

CONN HDR 25POS SMD TIN

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Features	Contact Finish	Mated Stacking Heights	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd DF9A-25P-1V(22)	Surface Mount	3.3 mm	0.13 in	Header Center Strip Contacts	Board Guide	Tin	4.3 mm	2	25	1 mm	0.039 in
Hirose Electric Co Ltd DF9A-17P-1V(22)	Surface Mount	3.3 mm	0.13 in	Header Center Strip Contacts	Board Guide	Tin	4.3 mm	2		1 mm	0.039 in
Hirose Electric Co Ltd DF9A-41S-1V(20)	Surface Mount	3.3 mm	0.13 in	Receptacle Outer Shroud Contacts	Board Guide	Tin	4.3 mm	2	41	1 mm	0.039 in
Hirose Electric Co Ltd DF9A-19P-1V(69)
Hirose Electric Co Ltd DF9A-9P-1V(22)	Surface Mount	3.3 mm	0.13 in	Header Center Strip Contacts	Board Guide	Tin	4.3 mm	2	9	1 mm	0.039 in
Hirose Electric Co Ltd DF9A-15S-1V(21)	Surface Mount	3.3 mm	0.13 in	Receptacle Outer Shroud Contacts	Board Guide	Tin	4.3 mm	2	15	1 mm	0.039 in
Hirose Electric Co Ltd DF9A-11P-1V(69)	Surface Mount	3.3 mm	0.13 in	Header Center Strip Contacts	Board Guide	Gold	4.3 mm	2	11	1 mm	0.039 in

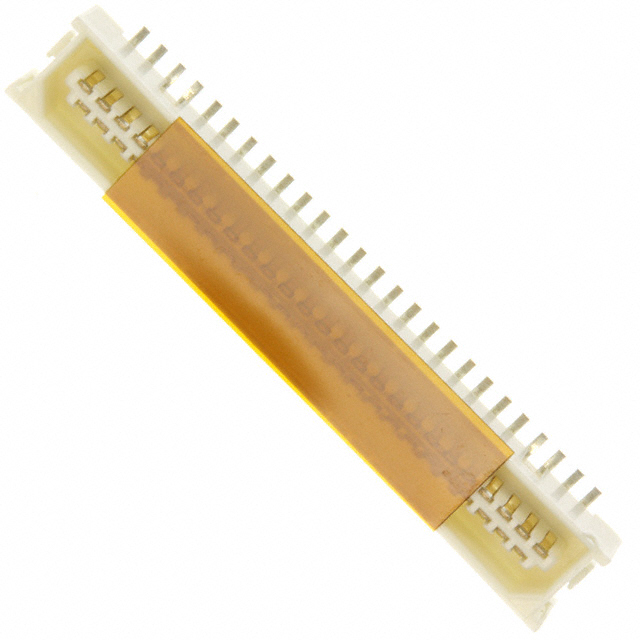

Hirose Electric Co Ltd DF9A-51P-1V(69)	Surface Mount	3.3 mm	0.13 in	Header Center Strip Contacts	Board Guide	Gold	4.3 mm	2	51	1 mm	0.039 in
Hirose Electric Co Ltd DF9A-51S-1V(69)	Surface Mount	3.3 mm	0.13 in	Receptacle Outer Shroud Contacts	Board Guide	Gold	4.3 mm	2	51	1 mm	0.039 in	0.203 çm	8 µin
Hirose Electric Co Ltd DF9A-41S-1V(22)	Surface Mount	3.3 mm	0.13 in	Receptacle Outer Shroud Contacts	Board Guide	Tin	4.3 mm	2	41	1 mm	0.039 in
