ATSAMA5D27C-LD2G Series

LPDDR2 SiP 1Gbit

Catalog

LPDDR2 SiP 1Gbit

Part	Core Processor	Interconnect System	Board Type	Platform	Mounting Type	Contents	Type	Utilized IC / Part	Co-Processors/DSP	Number of Cores/Bus Width	Security Features	RAM Controllers	Display & Interface Controllers	USB	Supplier Device Package	Speed	Ethernet	Ethernet [Max]	Ethernet [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Additional Interfaces	Voltage - I/O	Flash Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Module/Board Type	RAM Size
Microchip Technology ATSAMA5D2-PTC-EK	ARM® Cortex®-A5	mikroBUS Click Xplained Pro	Evaluation Platform	SAMA5D2 Peripheral Touch Controller	Fixed	Board(s) Cable(s)	MPU	SAMA5D27
Microchip Technology ATSAMA5D27C-CNVAO	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	105 °C	-40 °C	CAN EBI/EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V
Microchip Technology ATSAMA5D27C-LD1G-CUR	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	16x16 361-TFBGA	500 MHz	1	100 Mbps	10 Mbps	361-TFBGA	85 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V
Microchip Technology ATSAMA5D27A-CN	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	105 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V

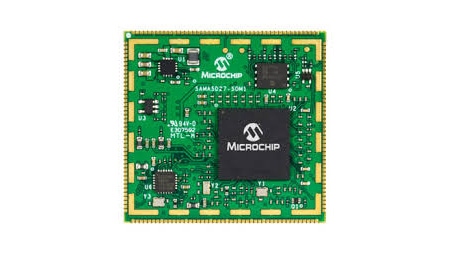

Microchip Technology ATSAMA5D27-SOM1	ARM® Cortex®-A5															500 MHz					85 °C	-40 °C			1 Kb 8 MB	30 mm	1.18 "	40 mm	1.57 "	Edge Connector	MPU Core	1 Gb
Microchip Technology ATSAMA5D27C-CNRVAO	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	105 °C	-40 °C	CAN EBI/EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V
Microchip Technology ATSAMA5D27B-CNR	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	105 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V
Microchip Technology ATSAMA5D27C-LD1G-CU	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	16x16 361-TFBGA	500 MHz	1	100 Mbps	10 Mbps	361-TFBGA	85 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V
Microchip Technology ATSAMA5D27C-D5M-CU	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	85 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V
Microchip Technology ATSAMA5D27C-CU	ARM® Cortex®-A5				Surface Mount				Multimedia NEON™ MPE	1 Core 32 Bit	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	Keyboard LCD Touchscreen	USB 2.0 + HSIC	289-LFBGA (14x14)	500 MHz	1	100 Mbps	10 Mbps	289-LFBGA	85 °C	-40 °C	I2C QSPI SMC SPI SPS UART USART	3.3 V

Catalog

LPDDR2 SiP 1Gbit

Key Features

• Low System Cost and High Value Integration:* 1Gbit LPDDR2, 32-bit databus

• * Peripheral Touch Controller

• * Embedded audio subsystem

• * 0.8mm ball pitch package reduces PCB design complexity

• * Simple power management scheme

•

• Ultra-Low Power Consumption:* Low-power architecture for extensive battery life

• * <200uA retention mode with fast wake-up

• * 5uA in backup mode

•

• State-of-the-Art Security:* Secure Boot

• * Execution of encrypted code with an "on-the-fly" encryption-decryption process

• * Integrity Check Monitor of the memory content

• * Hardware encryption engine

• * Tamper pins and secure key storage

•

• Extensive Ecosystem:* Free Linux® distributions

• * MPLAB X Integrated Development Environment

• * MPLAB Harmony 3

• * Complete set of C examples for bare metal users

• * Multiple third-party software and hardware partners

Description

The SAMA5D27C-LD1G is a high-performance, low-power Arm Cortex-A5 CPU-based embedded microprocessor (MPU) running up to 500 MHz, with 1Gbit LPDDR2 memory. The device integrates powerful peripherals for connectivity and user interface applications, and offers advanced security functions (Arm TrustZone® , tamper detection, secure data storage, secure boot, etc.), as well as high-performance crypto accelerators AES, SHA and TRNG. The SAMA5D2 series is delivered with free Linux® distributions, MPLAB X IDE, MPLAB Harmony v3 and bare metal C examples. Microchip provides fully tested and validated power management solutions complying with the SAMA5D27C-LD1G specific power sequencing needs -enabling a risk-free solution immediately on first power-up. Go to the **[Treelinktool](https://www.microchip.com/Treelinktool)** -> DC/DC converters and select SAMA5D2 and LPDDR2 memory to find more details.
