894-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER R/A 84POS 2.54MM

...

Part	Fastening Type	Number of Rows [custom]	Insulation Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Number of Positions [custom]	Contact Length - Mating	Contact Length - Mating [x]	Current Rating (Amps)	Connector Type	Contact Shape	Termination	Shrouding	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Material	Mounting Type	Number of Positions Loaded	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]

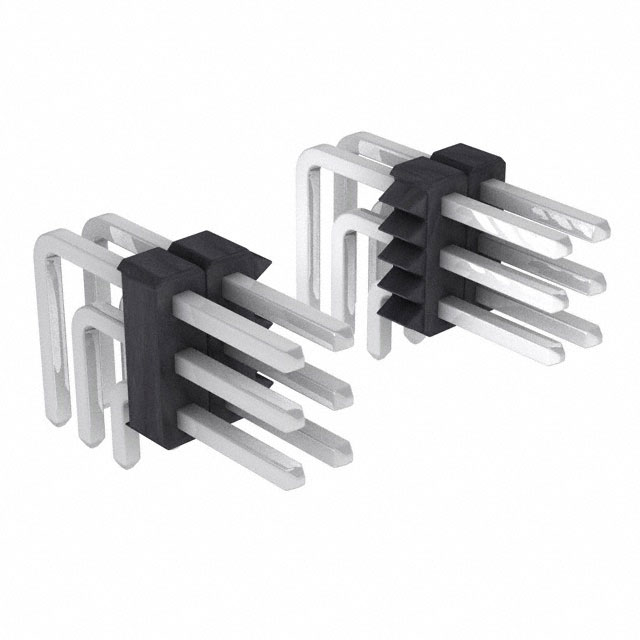

Preci-Dip 894-80-084-20-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	7.62 mm	0.3 in	150 VDC	Tin	84	7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Right Angle Through Hole	All
Preci-Dip 894-80-105-20-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	7.62 mm	0.3 in	150 VDC	Tin		7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Right Angle Through Hole	All	105

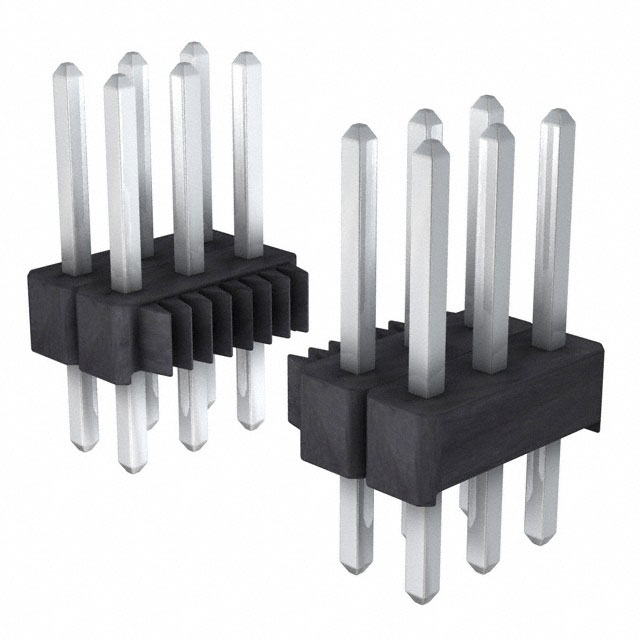

Preci-Dip 894-80-099-10-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Through Hole	All	99	0.494 in	12.54 mm
Preci-Dip 894-80-111-20-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	7.62 mm	0.3 in	150 VDC	Tin		7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Right Angle Through Hole	All	111

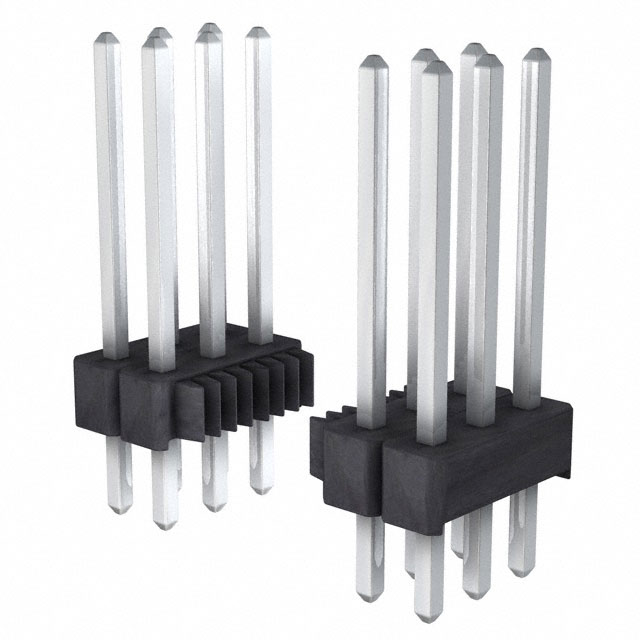

Preci-Dip 894-80-021-10-004101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		14.91 mm		3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Through Hole	All	21	20.44 mm		0.587 in	0.805 in

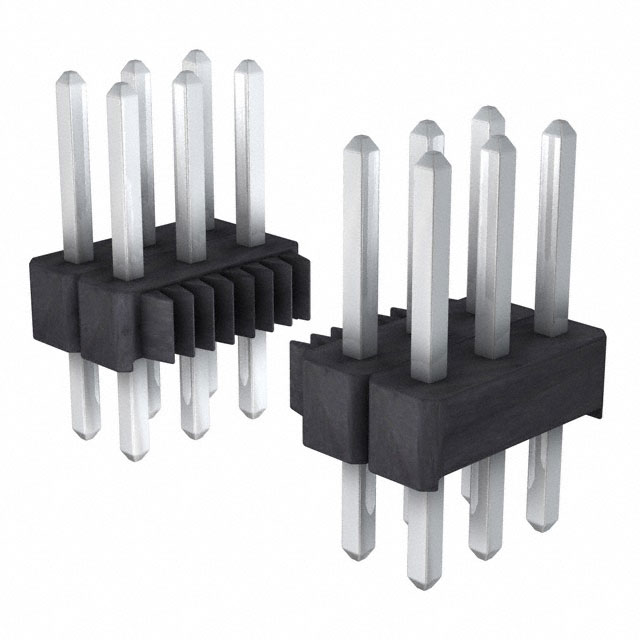

Preci-Dip 894-80-030-10-001101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		6 mm		3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm			Brass	Through Hole	All	30	11.64 mm		0.236 in	0.458 "	0.122 in	3.1 mm
Preci-Dip 894-80-108-10-004101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		14.91 mm		3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Through Hole	All	108	20.44 mm		0.587 in	0.805 in
Preci-Dip 894-80-087-10-001101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		6 mm		3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm			Brass	Through Hole	All	87	11.64 mm		0.236 in	0.458 "	0.122 in	3.1 mm
Preci-Dip 894-80-102-10-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Through Hole	All	102	0.494 in	12.54 mm
Preci-Dip 894-80-072-10-002101	Push-Pull	3	Black	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	2.54 mm	0.1 in	150 VDC	Tin		7 mm	0.276 in	3 A	Header	Square	Solder	Unshrouded	Male Pin	0.1 "	2.54 mm	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	Brass	Through Hole	All	72	0.494 in	12.54 mm
