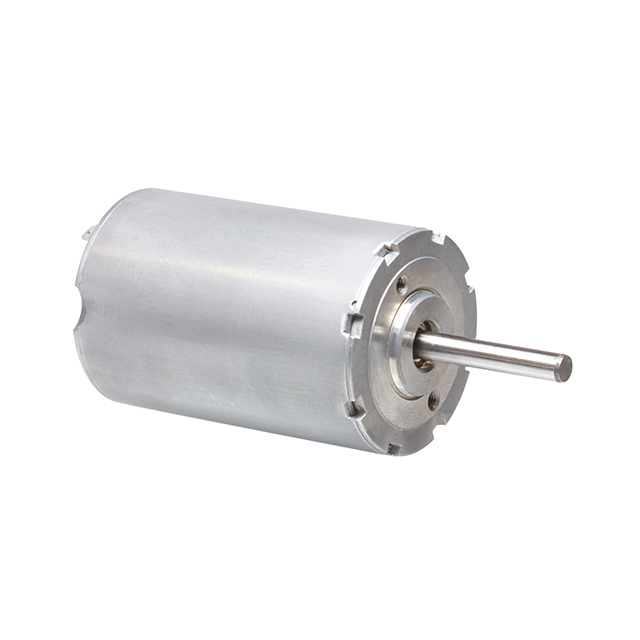

BLDC40S40 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 4050 RPM 24V
| Part | Weight [custom] | Weight [custom] | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Function | Power - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Type | Motor Type | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.882 lb | 400.07 g | 4050 RPM | 45 °C | -20 ░C | Standard | 109 W | 0.984 in | 25 mm | 36.26 oz-in | 256 mNm | 40 mm | Round | 1.575 in | DC Motor | Brushless (BLDC) | Solder Tab | 0.197 in | 5 mm | 24 VDC | 1.102 in | 28 mm |
