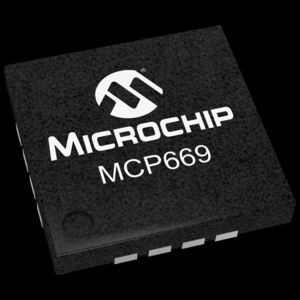

MCP669 Series

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Catalog

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Part	Slew Rate	Current - Output / Channel [custom]	Amplifier Type	Voltage - Input Offset	Operating Temperature [Min]	Operating Temperature [Max]	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Package / Case	Number of Circuits	Current - Supply	Mounting Type	Output Type
Microchip Technology MCP669T-E/ML	32 V/çs	90 mA	General Purpose	1.8 mV	-40 °C	125 °C	60 MHz	5.5 V	16-QFN (4x4)	2.5 V	6 pA	16-VQFN Exposed Pad	4	6 mA	Surface Mount	Rail-to-Rail
Microchip Technology MCP669-E/ML	32 V/çs	90 mA	General Purpose	1.8 mV	-40 °C	125 °C	60 MHz	5.5 V	16-QFN (4x4)	2.5 V	6 pA	16-VQFN Exposed Pad	4	6 mA	Surface Mount	Rail-to-Rail

Catalog

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Key Features

• * Two Chip Select Pins

• * High Gain Bandwidth of 60 MHz

• * Short Circuit Current of 90 mA

• * Noise: 6.8nV/rtHz

• * Rail-to-Rail Output

• * Slew Rate: 32 V/us

Description

The MCP66x family of operational amplifiers features high gain bandwidth product, and high output short circuit current. Select devices also offer a Chip Select pin that supports a low power mode of operation. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail.
