CDFR3W3 Series
Manufacturer: NorComp Inc.
Beta
⌘K

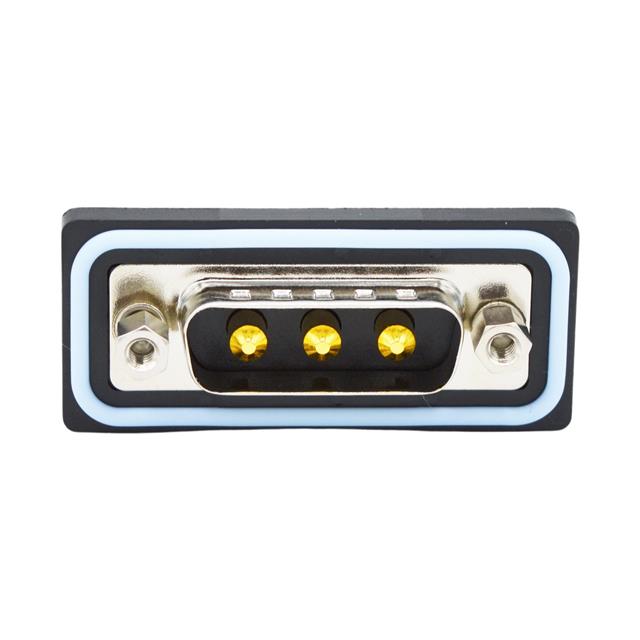

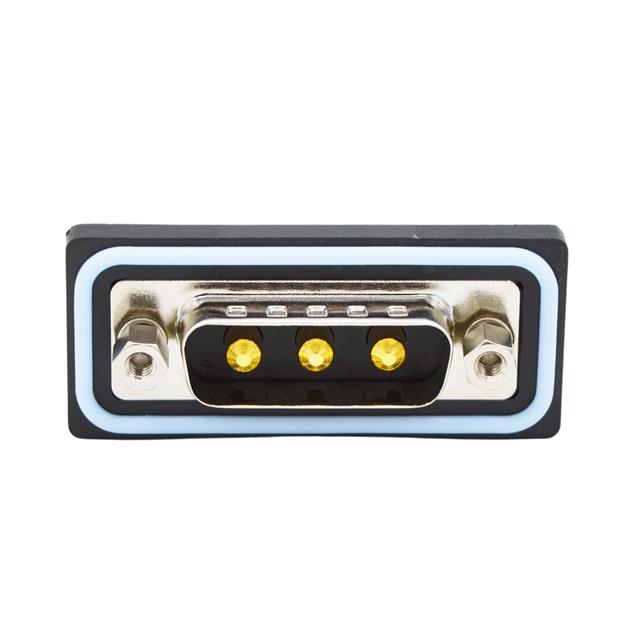

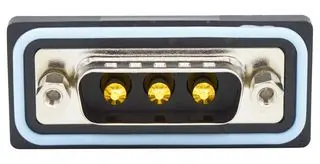

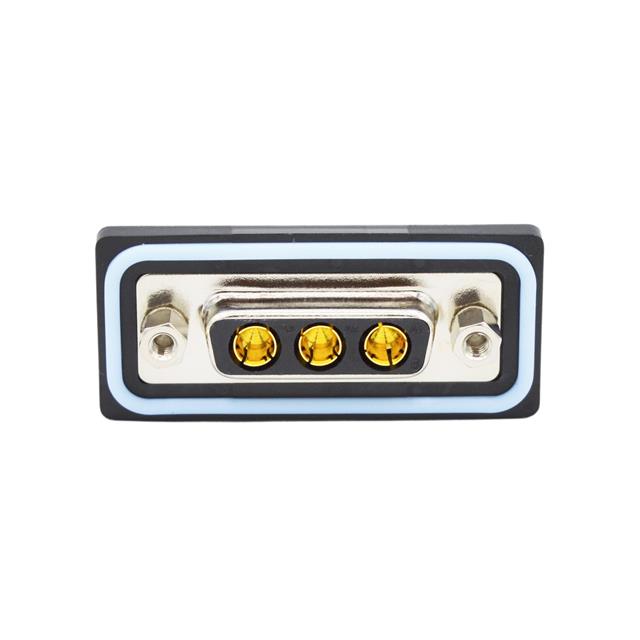

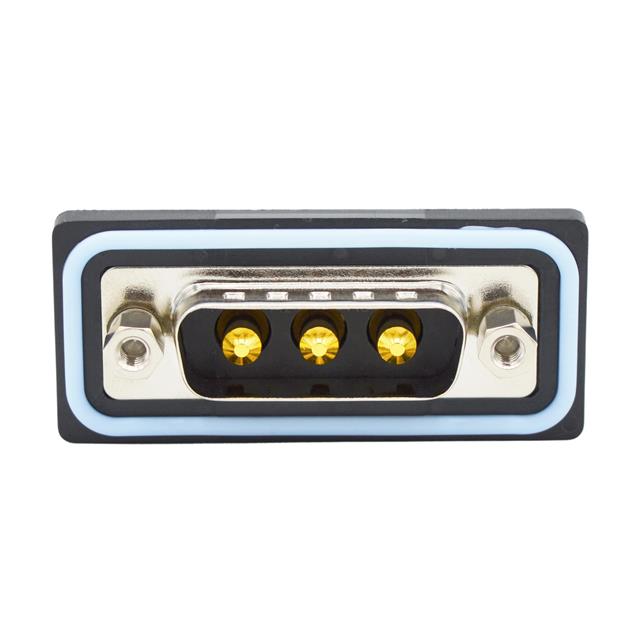

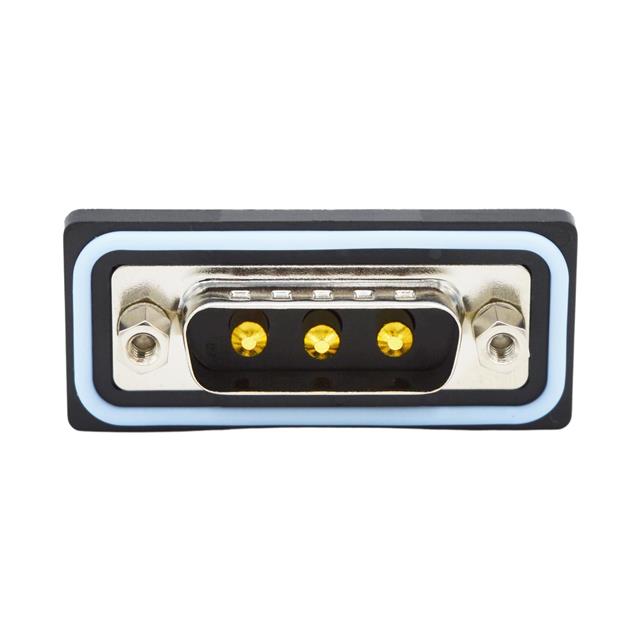

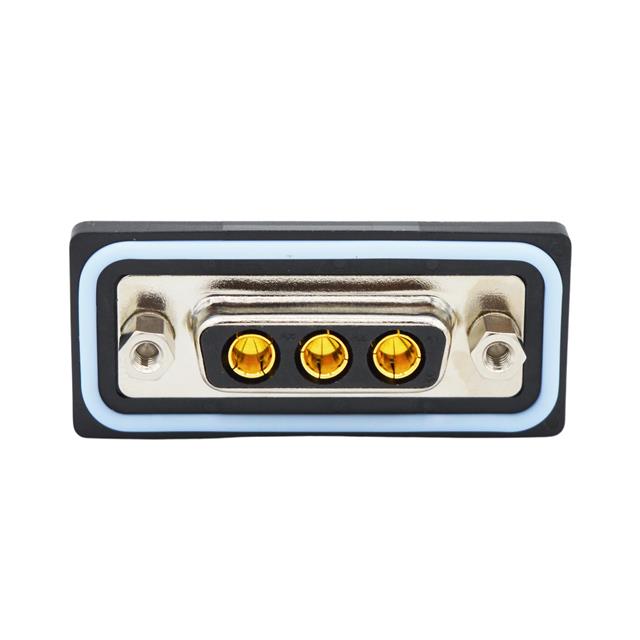

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 POWER, SOLDER
| Part | Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Ingress Protection | Contact Type | Number of Rows | Current Rating (Amps) | Flange Feature | Material Flammability Rating | Connector Style | Connector Type | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shell Size, Connector Layout | Features | Shell Material, Finish | Mounting Type | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 20A 5A | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Plug Male Pins | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Grounding Indents | Nickel Plated Steel | Panel Mount Right Angle Through Hole | ||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Plug Male Pins | Solder | 3 | Gold | 2 (DA A) - 3W3 | Board Lock Grounding Indents Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | 20 A | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Plug Male Pins | Solder | 3 | Gold | 2 (DA A) - 3W3 | Grounding Indents | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | 20 A | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 20A 5A | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Receptacle Female Sockets | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Nickel Plated Steel | Panel Mount Right Angle Through Hole | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Receptacle Female Sockets | Solder | 3 | Gold | 2 (DA A) - 3W3 | Board Lock Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | 40 A | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Receptacle Female Sockets | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Board Lock Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | 20 A | ||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 20A 5A | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Plug Male Pins | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Board Lock Grounding Indents Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | ||
NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 20A 5A | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Receptacle Female Sockets | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Board Lock Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | ||
NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Receptacle Female Sockets | Solder | 3 | Gold | 2 (DA A) - 3W3 | Board Lock Mounting Brackets | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | 20 A | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Power | 1 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Combo D-Sub | Plug Male Pins | Solder | 3 | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 3W3 | Grounding Indents | Nickel Plated Steel | Panel Mount Right Angle Through Hole | 20 A |
