BXRC-20 Series

Manufacturer: BRIDGELUX

Catalog

LED COB VERO SE 29 WHT RND 2000K

Part	Current - Max [Max]	Size / Dimension [diameter]	CCT (K)	CCT (K)	Height [z]	Light Emitting Surface (LES) [diameter]	Temperature - Test	CRI (Color Rendering Index)	Current - Test	Lumens/Watt @ Current - Test	Configuration	Color	Lens Type	Type	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Features
BRIDGELUX BXRC-20B10K1-C-73-SE	3.42 A	49.2 mm	2000 K	3-Step MacAdam Ellipse	3.6 mm	29.2 mm	25 °C	65	1.71 A	149 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	17682 lm	69.4 V

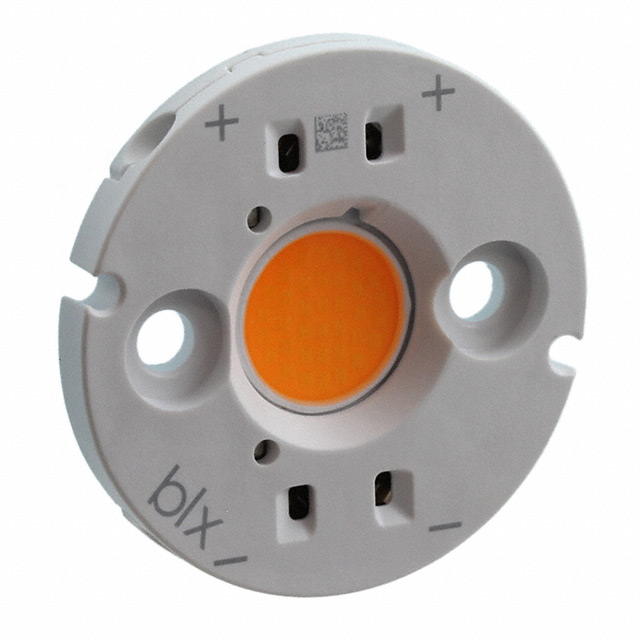

BRIDGELUX BXRC-20B1001-D-73-SE	700 mA	30.8 mm	2000 K	3-Step MacAdam Ellipse	3.6 mm	9.9 mm	85 °C	65	350 mA	130 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	1155 lm	25.3 V
BRIDGELUX BXRC-20B4001-C-73	2.34 A	36.2 mm	2000 K	3-Step MacAdam Ellipse	1.9 mm	18.4 mm	85 °C	65	1.17 A	121 lm/W 138 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	5351 lm 5473 lm	33.9 V 34.1 V	With Connector
BRIDGELUX BXRC-20B10K1-D-73-SE	4.2 A	49.2 mm	2000 K	3-Step MacAdam Ellipse	3.6 mm	29.2 mm	25 °C	65	2.1 A	149 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	11765 lm	37.6 V

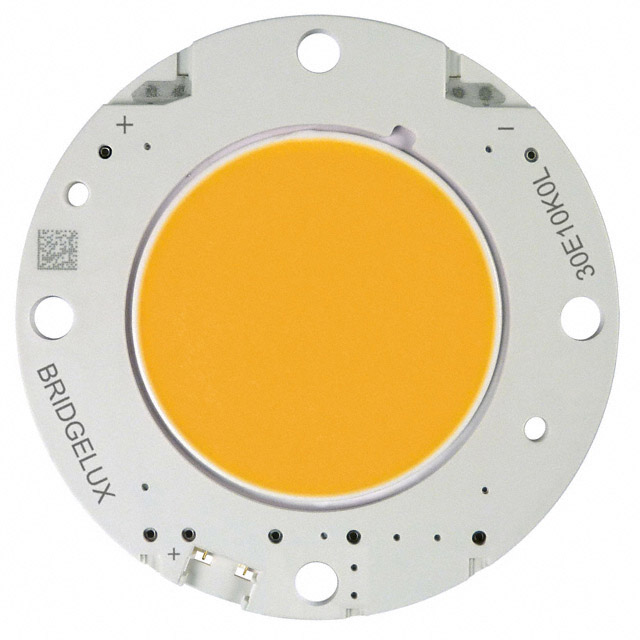

BRIDGELUX BXRC-20B10K1-D-73	4.2 A	49.2 mm	2000 K	3-Step MacAdam Ellipse	1.9 mm	29.2 mm	25 °C	65	2.1 A	149 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	11793 lm	37.6 V

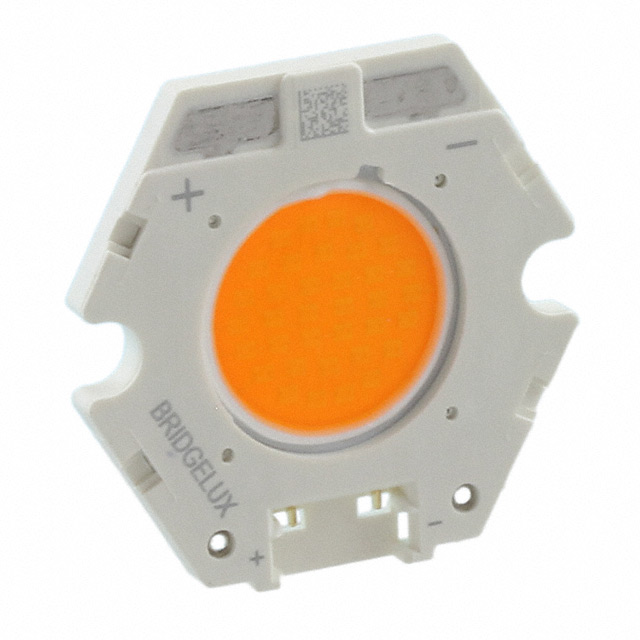

BRIDGELUX BXRC-20B1001-D-73	700 mA	20 mm	2000 K	3-Step MacAdam Ellipse	1.9 mm	9.9 mm	25 °C	65	350 mA	145 lm/W	Starboard	Warm White	Flat	Chip On Board (COB)	120 °	1322 lm	26 V	With Connector

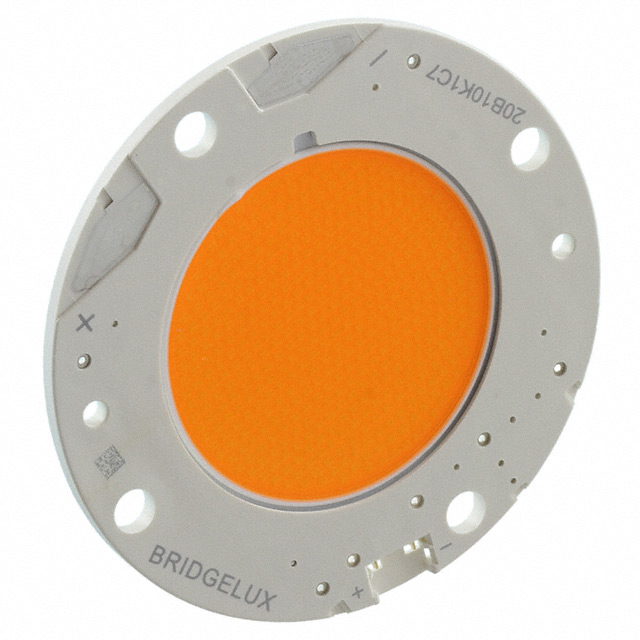

BRIDGELUX BXRC-20B10K1-C-73	3.42 A	49.2 mm	2000 K	3-Step MacAdam Ellipse	1.9 mm	29.2 mm	25 °C	65	1.71 A	149 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	17724 lm	69.4 V

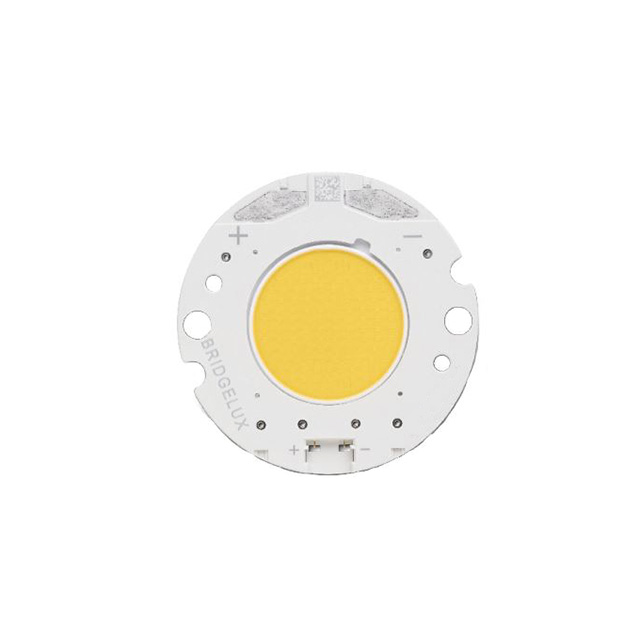

BRIDGELUX BXRC-20B4001-D-73	2.1 A	36.2 mm	2000 K	3-Step MacAdam Ellipse	1.9 mm	18.4 mm	85 °C	65	1.05 A	121 lm/W 139 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	3981 lm 4093 lm	28.1 V	With Connector

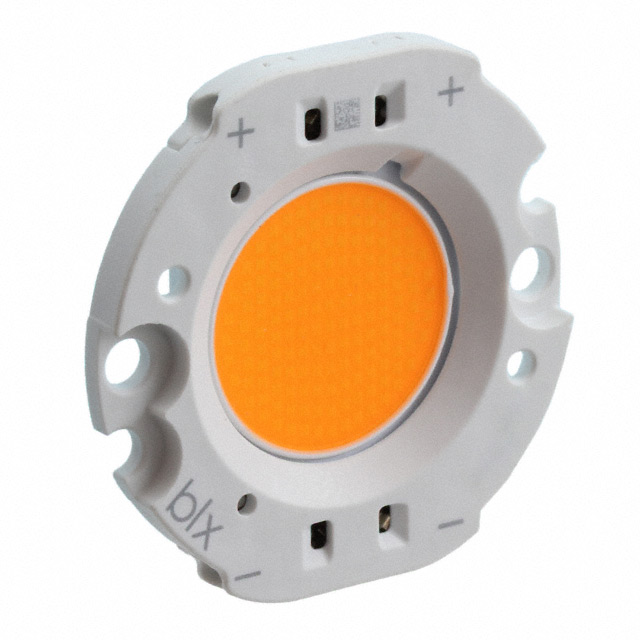

BRIDGELUX BXRC-20B4001-C-73-SE	2.34 A	36.2 mm	2000 K	3-Step MacAdam Ellipse	3.6 mm	18.4 mm	85 °C	65	1.17 A	132 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	5281 lm	34.1 V
BRIDGELUX BXRC-20B4001-D-73-SE	2.1 A	36.2 mm	2000 K	3-Step MacAdam Ellipse	3.6 mm	18.4 mm	85 °C	65	1.05 A	132 lm/W	Round	Warm White	Flat	Chip On Board (COB)	120 °	3929 lm	28.3 V
