PTRA-1C Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 40A 24V
| Part | Coil Resistance | Coil Insulation | Mounting Type | Approval Agency | Relay Type | Contact Material | Coil Current | Operate Time | Quick Connect Size (0.250") | Termination Style | Quick Connect Size (Primary) | Quick Connect Size (Secondary) | Quick Connect Size (0.187") | Contact Rating (Current) | Coil Type | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Release Time | Must Release Voltage | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Contact Form | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 120 Ohms | Class F | Chassis Mount | cUL cURus UL | General Purpose | Silver Cadmium Oxide (AgCdO) | 83.3 mA | 15 ms | 0.25 in | Quick Connect | 0.187 in | 0.25 in | 0.187 in | 40 A | Non Latching | 300 VAC | 110 VDC | -55 °C | 100 °C | 18 VDC | 10 ms | 7.2 VAC | 12000 VA | 4400 W | 1 C Form SPDT | 24 VDC | |

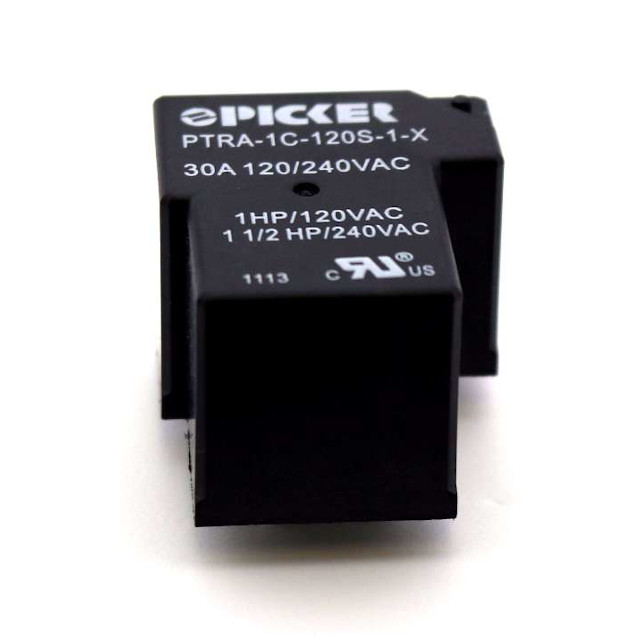

 Picker Components | 3.04 kOhms | Class F | Through Hole | cUL cURus UL | General Purpose | Silver Cadmium Oxide (AgCdO) | 39.5 mA | 15 ms | PC Pin | 40 A | Non Latching | 300 VAC | 110 VDC | -55 °C | 100 °C | 90 VAC | 10 ms | 36 VDC | 12000 VA | 4400 W | 1 C Form SPDT | 120 V | Fully Sealed | ||||

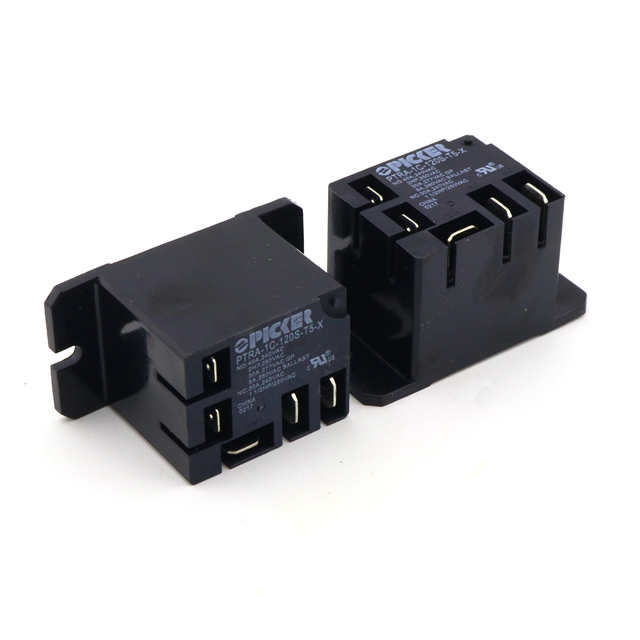

 Picker Components | 3.04 kOhms | Class F | Chassis Mount | cUL cURus UL | General Purpose | Silver Cadmium Oxide (AgCdO) | 16.6 mA | 15 ms | 0.25 in | Quick Connect | 0.187 in | 0.25 in | 0.187 in | 40 A | Non Latching | 300 VAC | 110 VDC | -55 °C | 100 °C | 90 VAC | 10 ms | 36 VDC | 12000 VA | 4400 W | 1 C Form SPDT | 120 V |
