NB3N3020 Series

Clock Multiplier, LVPECL / LVCMOS, Programmable, 3.3 V

Catalog

Clock Multiplier, LVPECL / LVCMOS, Programmable, 3.3 V

Part	Differential - Input:Output	Mounting Type	Output	Package / Case [x]	Package / Case	Package / Case [y]	Frequency - Max [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Input	PLL	Ratio - Input:Output [custom]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Type	Embedded	Function	Contents	Secondary Attributes	Utilized IC / Part	Primary Attributes
ON Semiconductor NB3N3020DTR2G	No/Yes	Surface Mount	LVCMOS LVPECL LVTTL	0.173 in	16-TSSOP	4.4 mm	210 MHz	2.97 V	3.63 V	16-TSSOP	Crystal LVCMOS LVTTL		1:2	1	85 °C	-40 °C	Clock Multiplier

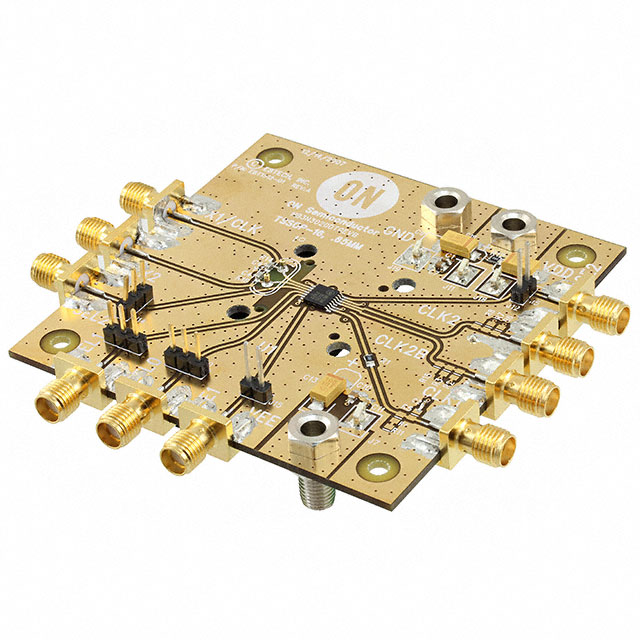

ON Semiconductor NB3N3020DTGEVB																	Timing		Clock Multiplier	Board(s)	SMA Connectors	NB3N3020	1 2 Inputs

Catalog

Clock Multiplier, LVPECL / LVCMOS, Programmable, 3.3 V

Key Features

• Period Jitter RMS of 5.0 ps

• 1 LV-PECL Differential Output and 1 LVMOS/LVTTL single ended output

• Selectable Clock Multiplier

• Operating Range - 3.3V +/- 10%

• Industrial Temperature Range -40C to +85C

Description

The NB3N3020 is a high precision, low phase noise selectable clock multiplier. The device takes a 5.0-27 MHz fundamental mode parallel resonant crystal or a 2.0-210 MHz LVCMOS single ended clock source and generates a differential LVPECL output and a single ended LVCMOS/LVTTL output at a selectable clock output frequency which is a multiple of the input clock frequency. Three tri-level LVCMOS/LVTTL single ended select pins set one of 26 possible clock multipliers. LVCMOS/LVTTL output enable (OE) tri-states clock outputs when low. This device is housed in 5.0 x 4.4 mm TSSOP-16.
