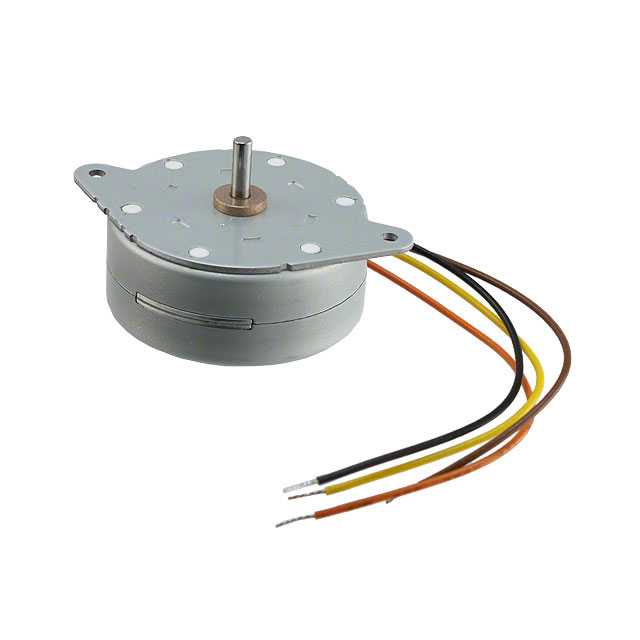

PM55L Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 167 MN-M, 600 MA
| Part | Termination Style | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Coil Type | Type | Voltage - Rated | Coil Resistance | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Current Rating (Amps) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Step Angle | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Wire Leads | 167 mNm | 23.4 oz-in | Bipolar | Permanent Magnet | 24 VDC | 5.5 Ohms | 55 mm | Round | 2.16 " | 2.56 in | 65 mm | 600 mA | 15 mm | 0.591 in | 0.157 in | 4 mm | 7.5 ° | Round Shaft |
