C0601 Series
Manufacturer: Prysmian Group
Beta
⌘K

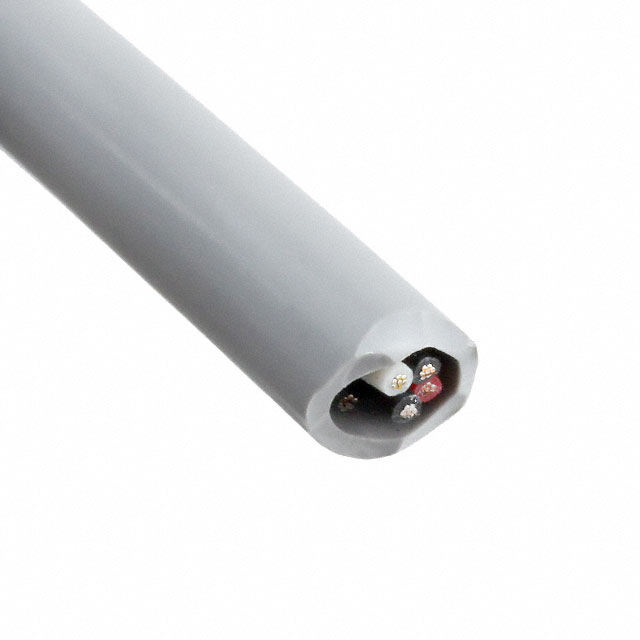

MULTI-PAIR 4COND 24AWG GRAY
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Conductor Material | Wire Gauge | Ratings | Features | Length | Length | Usage | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Cable Type | Shield Coverage | Shield Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 5.44 mm | 0.214 in | 4 | 7 | 32 AWG | Gray | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Annealed Tinned | 24 AWG | ASTM B-33 | Drain Wire | 152.4 m | 500 ft | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | Multi-Pair | ||||
Prysmian Group | 5.44 mm | 0.214 in | 4 | 7 | 32 AWG | Gray | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Annealed Tinned | 24 AWG | ASTM B-33 | Drain Wire | 152.4 m | 500 ft | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | Multi-Pair | 100 % | Flexfoil® | ||
 Prysmian Group | 5.44 mm | 0.214 in | 4 | 7 | 32 AWG | Gray | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Annealed Tinned | 24 AWG | ASTM B-33 | Drain Wire | 15.24 m 304.8 m | 50 ft 1000 ft | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | Multi-Pair | 100 % | Flexfoil® | 100 ft | 30.5 m |
Prysmian Group | 5.44 mm | 0.214 in | 4 | 7 | 32 AWG | Gray | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Annealed Tinned | 24 AWG | ASTM B-33 | Drain Wire | 15.24 m 304.8 m | 50 ft 1000 ft | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | Multi-Pair | 100 ft | 30.5 m |
