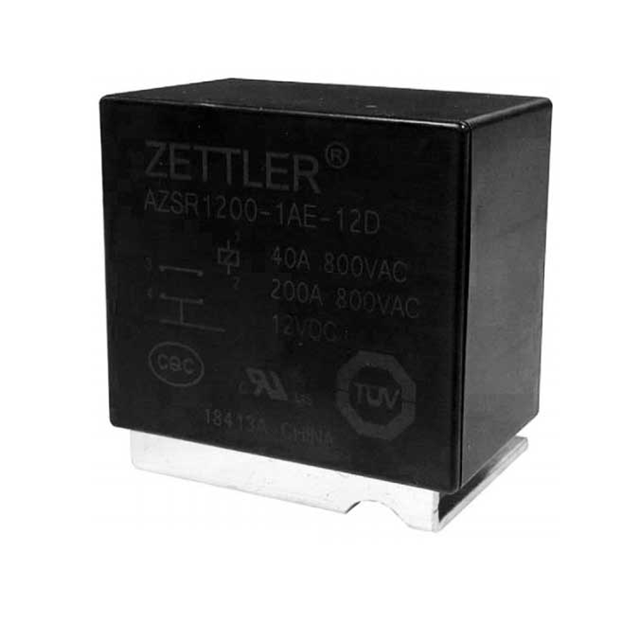

AZSR1200 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHG SOLAR SPST 200A 12V
| Part | Coil Resistance | Mounting Type | Coil Type | Contact Material | Must Release Voltage | Contact Form | Relay Type | Coil Voltage | Termination Style | Release Time | Coil Current | Switching Voltage [Max] | Coil Insulation | Approval Agency | Load - Max Switching | Must Operate Voltage | Contact Rating (Current) | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 48 Ohms | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | 0.6 VDC | SPST-NO (1 Form A) | EV Charging Solar | 12 VDC | PC Pin | 15 ms | 250 mA | 920 VAC | Class F | TUV UL | 110400 VA | 9 VDC | 200 A | 40 ms | 85 °C | -40 C |
American Zettler | 192 Ohms | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | 1.2 VDC | SPST-NO (1 Form A) | EV Charging Solar | 24 VDC | PC Pin | 15 ms | 125 mA | 920 VAC | Class F | TUV UL | 110400 VA | 18 VDC | 200 A | 40 ms | 85 °C | -40 C |
