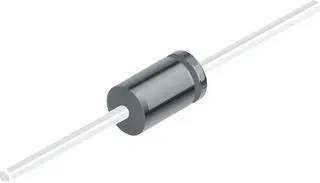

EGP20K Series

2.0A Ultra Fast Recovery Rectifier

Catalog

2.0A Ultra Fast Recovery Rectifier

Part	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Technology	Capacitance @ Vr, F	Speed	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]
ON Semiconductor EGP20D	50 ns	200 V	2 A	Through Hole	Standard	70 pF	200 mA 500 ns	Axial DO-15 DO-204AC	5 µA	150 °C	-65 C	DO-15	950 mV
ON Semiconductor EGP20K	75 ns	800 V	2 A	Through Hole	Standard	45 pF	200 mA 500 ns	Axial DO-15 DO-204AC	5 µA	150 °C	-65 C	DO-15		1.7 V
ON Semiconductor EGP20A	50 ns	50 V	2 A	Through Hole	Standard	70 pF	200 mA 500 ns	Axial DO-15 DO-204AC	5 µA	150 °C	-65 C	DO-15	950 mV

2.0A Ultra Fast Recovery Rectifier

• Glass passivated cavity-free junction

• High surge current capability

• Low leakage current

• Superfast recovery time for high efficiency

• Low forward voltage, high current capability
