DF3-8 Series

Catalog

CONN HEADER VERT 8POS 2MM

Part	Pitch - Mating	Pitch - Mating	Insulation Material	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Overall Contact Length	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Positions	Contact Type	Number of Rows	Fastening Type	Connector Type	Insulation Color	Material Flammability Rating	Mounting Type	Note	Pitch [x]	Pitch [x]	Contact Termination	Color	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Voltage Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post

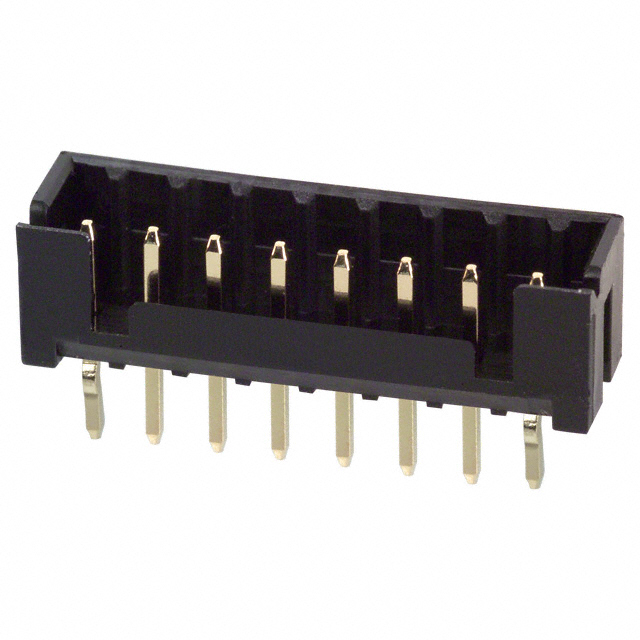

Hirose Electric Co Ltd DF3-8P-2DSA(01)	0.079 "	2 mm	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.197 "	5 mm	0.122 in	3.1 mm	0.114 in	2.9 mm	Brass	0.299 in 7.6 mm	Square	-55 C	105 ░C	Press-Fit Solder	Gold	3 A	Board to Board Cable	8 µin	0.203 µm	All	8	Male Pin	1	Push-Pull	Header	Black	UL94 V-0	Through Hole

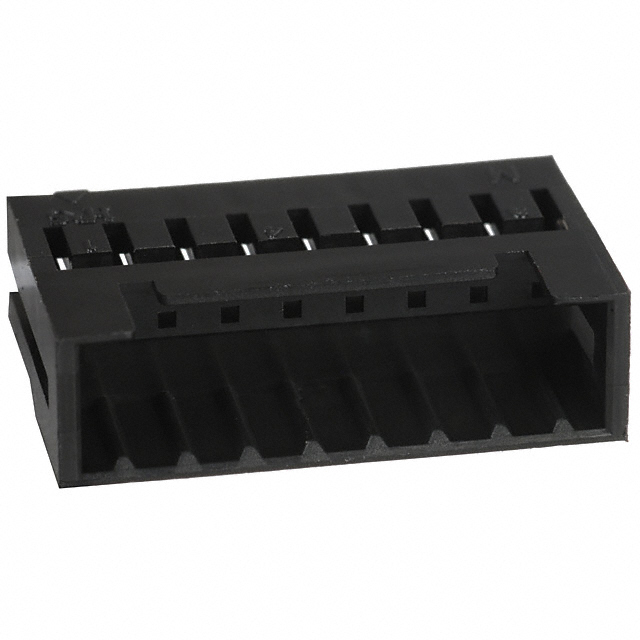

Hirose Electric Co Ltd DF3-8EP-2C			Nylon Polyamide (PA)											-55 C	105 ░C								8	Male Pin	1		Plug			Free Hanging (In-Line)	Contacts Not Included	0.079 in	2 mm	Crimp	Black

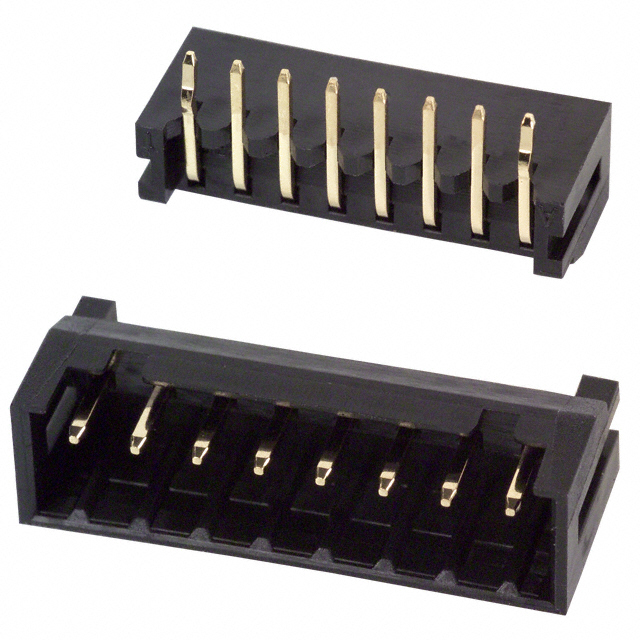

Hirose Electric Co Ltd DF3-8P-2DS(01)	0.079 "	2 mm	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.197 "	5 mm	0.122 in	3.1 mm	0.114 in	2.9 mm	Brass		Square	-55 C	105 ░C	Press-Fit Solder	Gold	3 A	Board to Board Cable	8 µin	0.203 µm	All	8	Male Pin	1	Push-Pull	Header	Black	UL94 V-0	Right Angle Through Hole

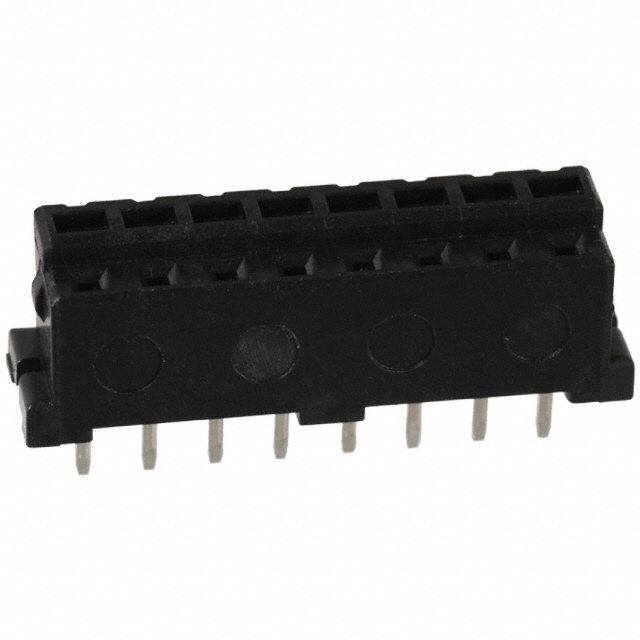

Hirose Electric Co Ltd DF3-8S-2DSA(25)	0.079 "	2 mm	Nylon Polyamide (PA)		0.232 in	5.9 mm					Phosphor Bronze		Square	-30 ░C	85 °C	Solder		3 A	Board to Board Cable	78.7 µin	2 µm	All	8	Female Socket	1	Friction Lock	Receptacle	Black	UL94 V-0	Through Hole						78.7 µin	2 µm	6.6 mm	7.5 mm	30 VAC	Tin	0.118 in	3 mm
