FX11A Series

Catalog

CONN HDR 80POS SMD GOLD

Part	Features	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Connector Type	Pitch	Pitch	Height Above Board	Height Above Board	Mated Stacking Heights [z]
Hirose Electric Co Ltd FX11A-80P/8-SV0.5(71)	Board Guide Ground Plate Solder Retention	Surface Mount	0.103 in	2.63 mm	80	2	0.1 Ám	4 Áin	Gold	3 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm
Hirose Electric Co Ltd FX11A-80P-SV(21)	Board Guide Solder Retention	Surface Mount			80	2	0.1 Ám	4 Áin	Gold	2.5 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm	2.13 mm	0.084 "
Hirose Electric Co Ltd FX11A-80P/8-SV0.5(92)	Board Guide Ground Plate Solder Retention	Surface Mount	0.103 in	2.63 mm	80	2	0.1 Ám	4 Áin	Gold	3 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm

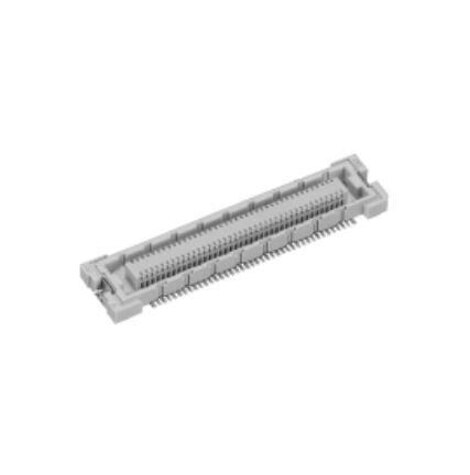

Hirose Electric Co Ltd FX11A-80S-SV(21)	Board Guide Solder Retention	Surface Mount	0.083 in	2.1 mm	80	2	0.1 Ám	3.94 µin	Gold		Receptacle Center Strip Contacts	0.02 "	0.5 mm			2.5 mm 3 mm

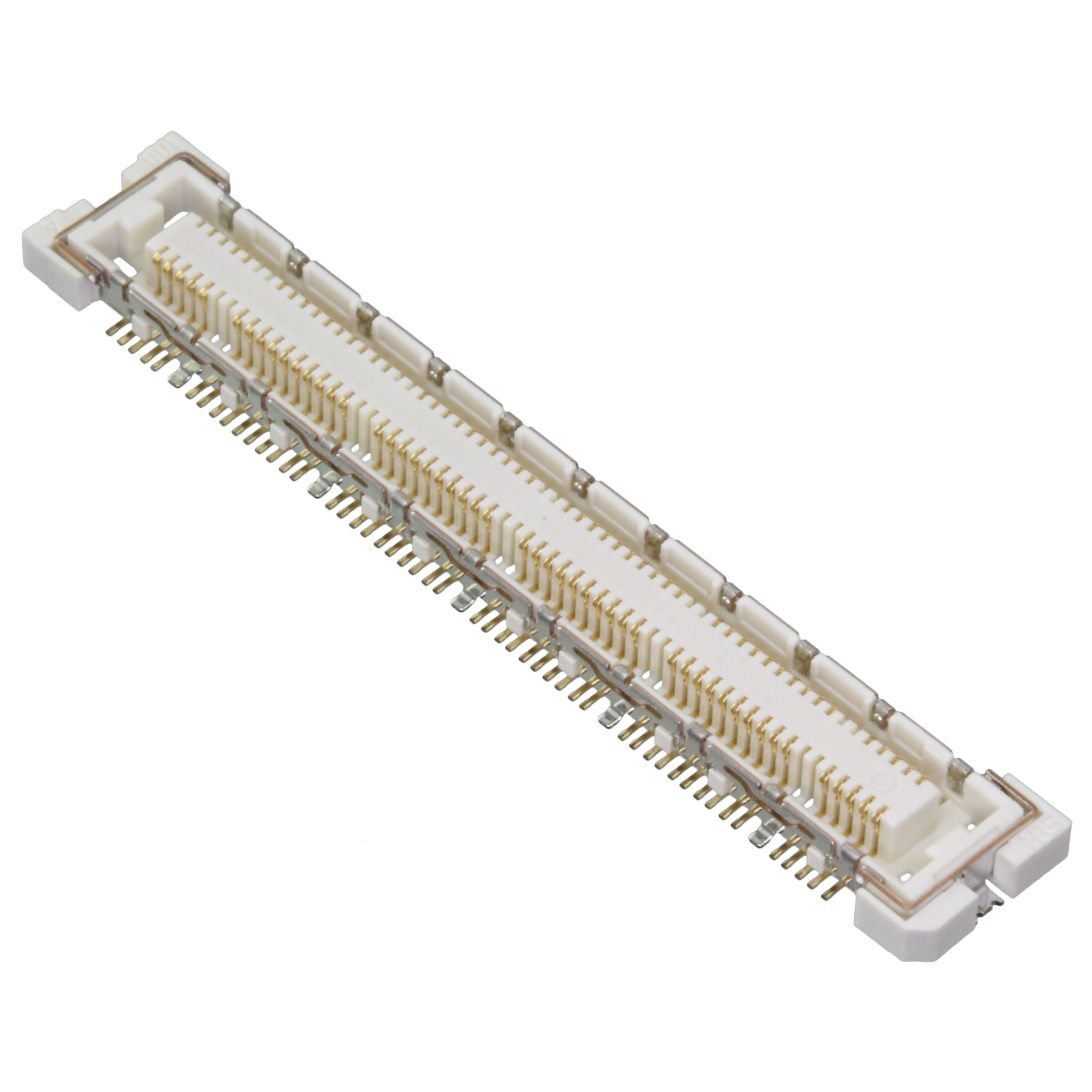

Hirose Electric Co Ltd FX11A-100S/10-SV(71)	Board Guide Ground Plate Solder Retention	Surface Mount	0.083 in	2.1 mm	100	2	0.1 Ám	4 Áin	Gold		Receptacle Center Strip Contacts	0.02 "	0.5 mm			2.5 mm 3 mm
Hirose Electric Co Ltd FX11A-100P/10-SV0.5(92)	Board Guide Ground Plate Solder Retention	Surface Mount	0.103 in	2.63 mm	100	2	0.1 Ám	4 Áin	Gold	3 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm
Hirose Electric Co Ltd FX11A-60P/6-SV(91)	Board Guide Ground Plate Solder Retention	Surface Mount			60	2	0.1 Ám	4 Áin	Gold	2.5 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm	2.13 mm	0.084 "
Hirose Electric Co Ltd FX11A-80P-SV0.5	Board Guide Solder Retention	Surface Mount	0.103 in	2.63 mm	80	2	0.1 Ám	4 Áin	Gold	3 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm
Hirose Electric Co Ltd FX11A-80S/8-SV(91)	Board Guide Ground Plate Solder Retention	Surface Mount	0.083 in	2.1 mm	80	2	0.1 Ám	4 Áin	Gold		Receptacle Center Strip Contacts	0.02 "	0.5 mm			2.5 mm 3 mm
Hirose Electric Co Ltd FX11A-100P-SV0.5(21)	Board Guide Solder Retention	Surface Mount	0.103 in	2.63 mm	100	2	0.1 Ám	4 Áin	Gold	3 mm	Header Outer Shroud Contacts	0.02 "	0.5 mm
