A17883 Series
Manufacturer: Laird Technologies - Thermal Materials
Beta
⌘K

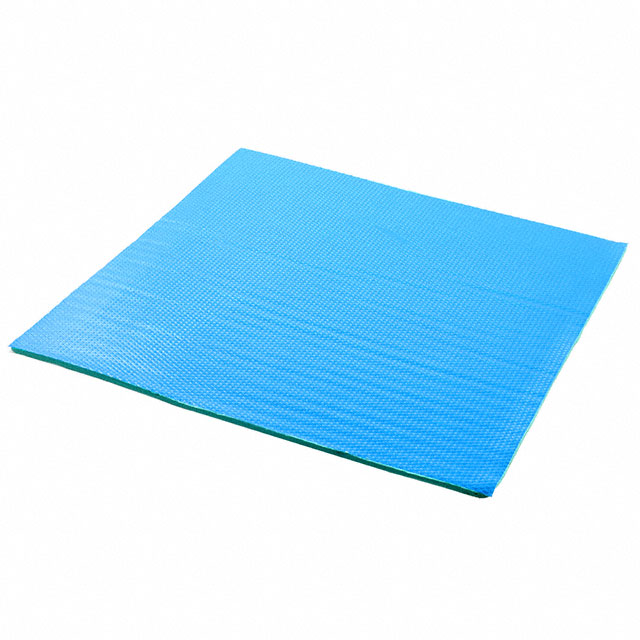

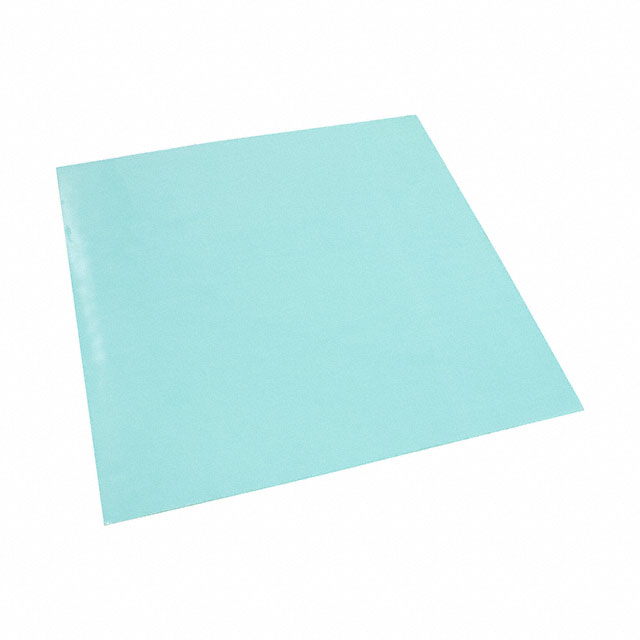

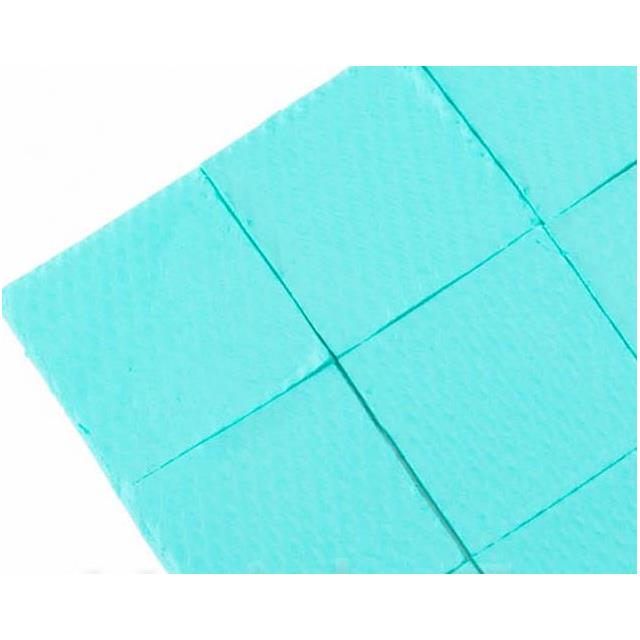

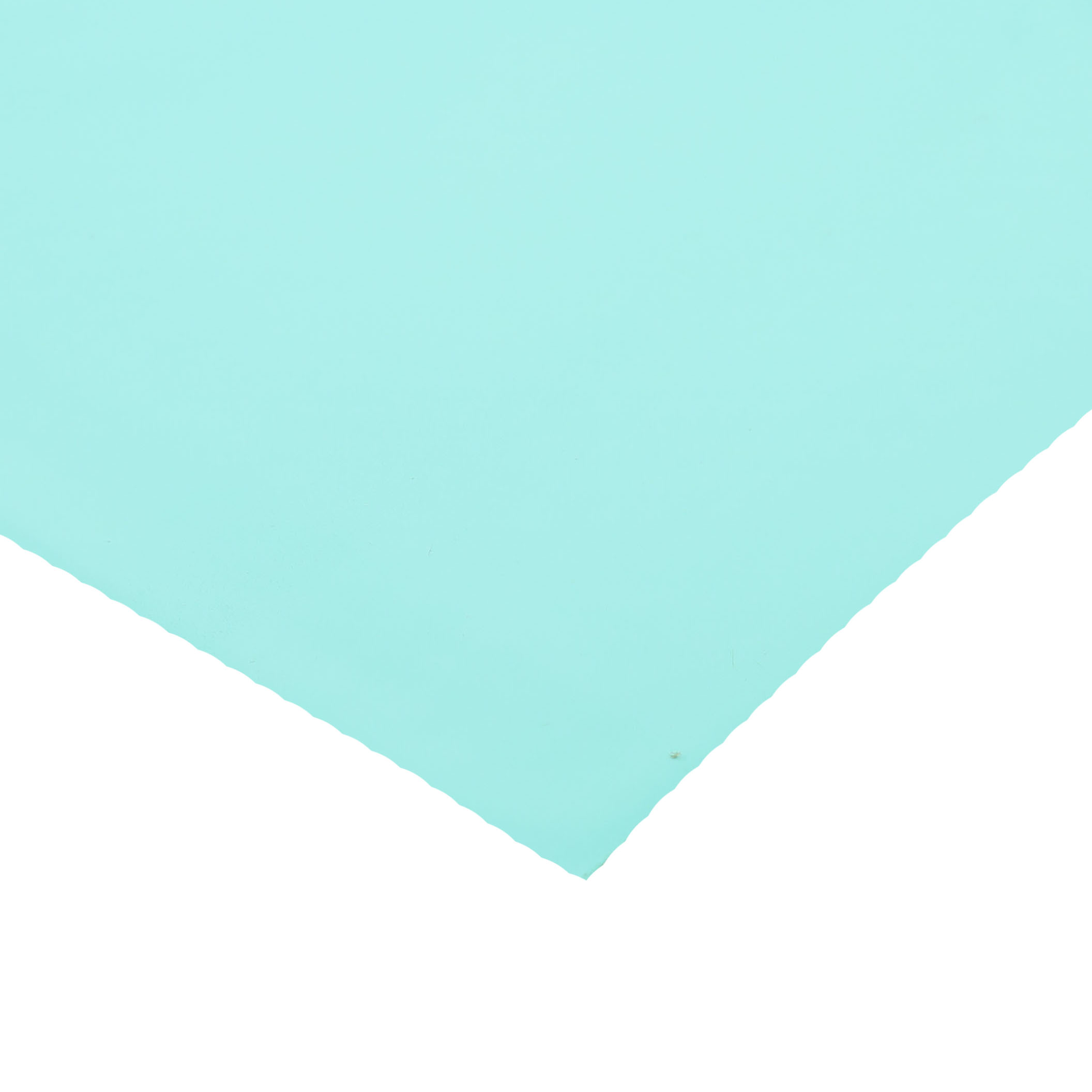

THERM PAD 228.6MMX228.6MM TEAL
| Part | Shelf Life Start | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Shelf Life | Outline [y] | Outline [x] | Shape | Material | Thermal Conductivity | Type | Color | Thickness | Thickness | Thickness [custom] | Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.15 in | 3.81 mm | ||
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.16 " | 4.06 mm | ||
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.19 in | 4.83 mm | ||
Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.17 " | 4.32 mm | ||
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.05 in | 50 mils | ||
Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.18 in | 4.57 mm | ||
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.04 in | 1.016 mm | ||
Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.12 " | 3.05 mm | ||
 Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 0.08 in | 80 mils | ||
Laird Technologies - Thermal Materials | Date of Certification | 0 °C | 35 °C | 32 °F | 95 °F | 12 Months | 228.6 mm | 228.6 mm | Square | Silicone Ceramic Filled | 6 W/m-K | Gap Filler Pad Sheet | Teal | 3.56 mm | 0.14 in |
