A3-4PA-2 Series

Catalog

CONN HEADER SMD 4POS 2MM

Part	Mated Stacking Heights [z]	Shrouding	Mounting Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Number of Positions Loaded	Termination	Insulation Color	Contact Finish - Mating	Contact Type	Connector Type	Number of Positions	Contact Shape	Contact Material	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd A3-4PA-2SV	6 mm 8.8 mm	Unshrouded	Surface Mount	2	0.079 "	2 mm	UL94 V-0	Board to Board Cable	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	All	Solder	Brown	Gold	Male Pin	Header	4	Square	Brass	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS)	200 V	-55 C	85 °C

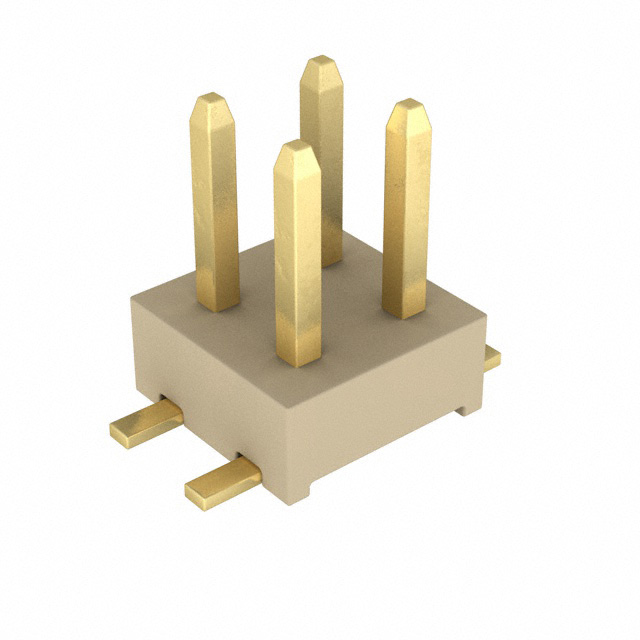

Hirose Electric Co Ltd A3-4PA-2SV(71)	6 mm 8.8 mm	Unshrouded	Surface Mount	2	0.079 "	2 mm	UL94 V-0	Board to Board Cable	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	All	Solder	Brown	Gold	Male Pin	Header	4	Square	Brass	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS)	200 V	-55 C	85 °C	Flash	Gold	8 µin	0.203 µm
