RP Series

Catalog

ENCLOSURES, BOXES, & CASES PC WATERTIGHT CLEAR LID

Part	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Thickness	Thickness	Color	Material Flammability Rating	Height [z]	Height [z]	Material	Height	Height	Features	Size / Dimension [y]	Thickness [custom]	Thickness [custom]	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing RP1170BFC	172 cm²	26.7 in²	Box	88.14 mm	3.47 "	7.68 in	195.07 mm	Cover Included	0.08 in	2.03 mm	Clear Cover/Door Off White	UL94 V-2	2.17 "	55.12 mm	ABS
Hammond Manufacturing RP1380	274 cm²	42.4 in²	Box	146.99 mm	5.787 in	7.35 in	186.69 mm	Cover Included	0.118 in	3 mm	Off White	UL94 HB			Polycarbonate	4.331 in	110 mm	PCB Supports Watertight
Hammond Manufacturing RP1140C	108 cm²	16.7 in²	Box		3.39 "	4.94 "	125.48 mm	Cover Included	0.08 in	2.03 mm	Clear Cover/Door Off White	UL94 V-2			Polycarbonate	2.76 in	70.1 mm		86.11 mm

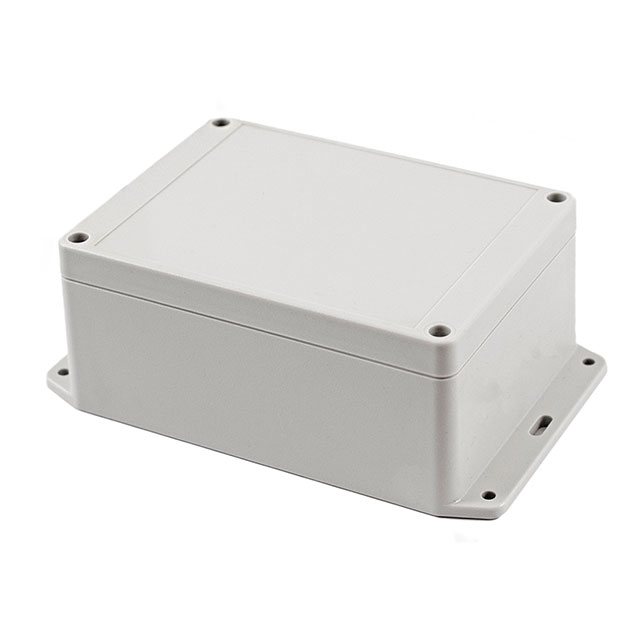

Hammond Manufacturing RP1210BF	188 cm²	29.1 in²	Box	107.7 mm	4.24 in	6.89 in	175.01 mm	Cover Included	0.08 in	2.03 mm	Off White	UL94 V-2	2.56 in	65.02 mm	Polycarbonate Polycarbonate (PC)

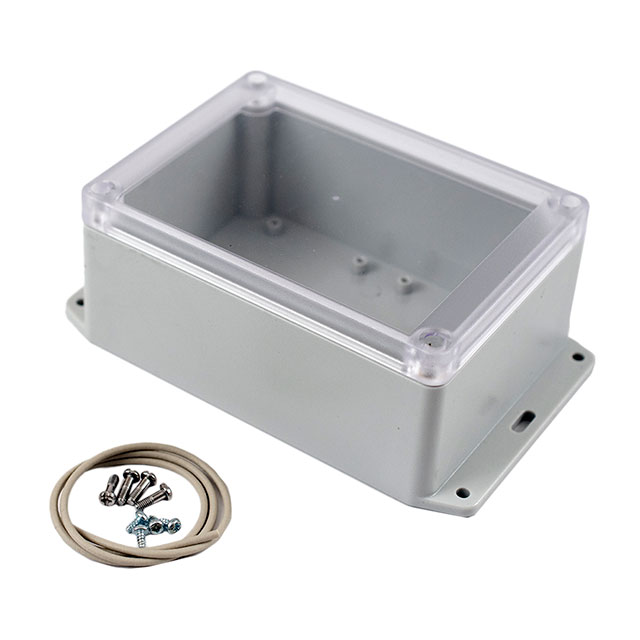

Hammond Manufacturing RP1210BFC	188 cm²	29.1 in²	Box	107.7 mm	4.24 in	6.89 in	175.01 mm	Cover Included	0.08 in	2.03 mm	Clear Cover/Door Off White	UL94 V-2	2.56 in	65.02 mm	Polycarbonate
Hammond Manufacturing RP1465	363 cm²	56.3 in²	Box	164.97 mm	6.495 in	8.661 in	219.99 mm	Cover Included			Gray	UL94 HB			ABS	3.343 in	84.91 mm	PCB Supports Watertight		0.138 in	3.5 mm

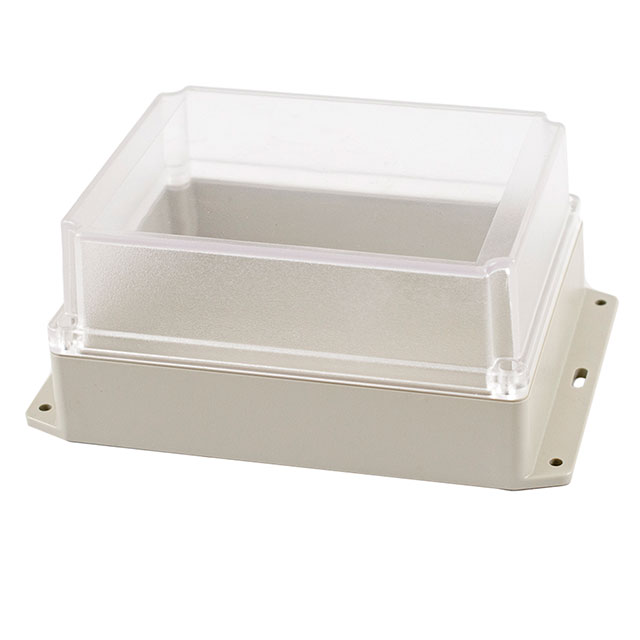

Hammond Manufacturing RP1375BFC	50.8 in² 328 cm˛	50.8 in˛	Box		5.87 in 149.1 mm	8.66 in 219.96 mm		Cover Included	0.08 in	2.03 mm	Clear Cover/Door Gray	UL94 HB	3.54 "	89.92 mm	ABS							328 cm²
Hammond Manufacturing RP1170C	144 cm²	22.3 in²	Box	86.61 mm	3.41 in	6.54 "	166.12 mm	Cover Included	0.08 in	2.03 mm	Clear Cover/Door Off White	UL94 V-2	1.57 in	39.88 mm	ABS

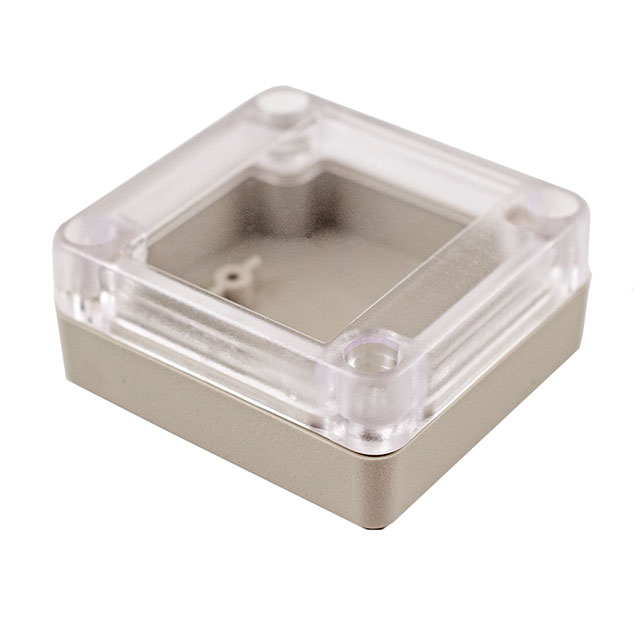

Hammond Manufacturing RP1015C	39.6 cm²	6.14 in²	Box	60.45 mm	2.38 in	2.58 in	65.53 mm	Cover Included	0.08 in	2.03 mm	Clear Cover/Door Gray	UL94 HB			ABS Polycarbonate	1.1 in	27.94 mm

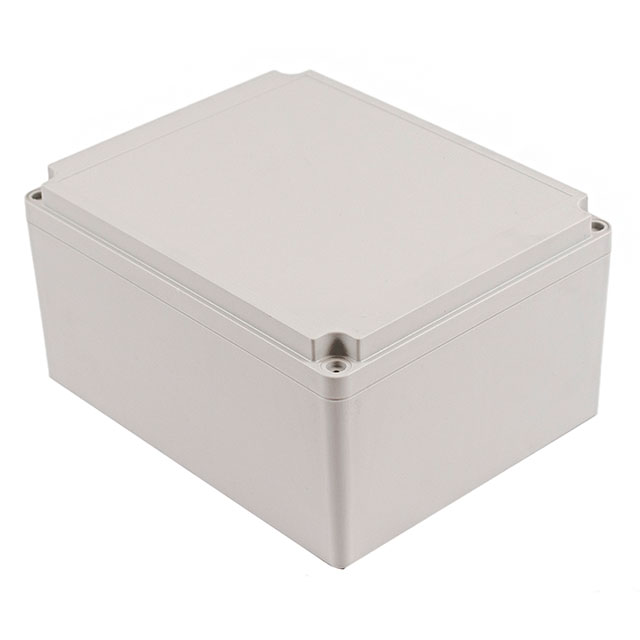

Hammond Manufacturing RP1630	518 cm˛	80.3 in˛	Box		8.03 in	10 in	254 mm	Cover Included	0.08 in	2.03 mm	Off White	UL94 V-2			Polycarbonate	5.12 in	130.05 mm		203.96 mm				518 cm²	80.3 in²
