C4070 Series
Manufacturer: Prysmian Group
Beta
⌘K

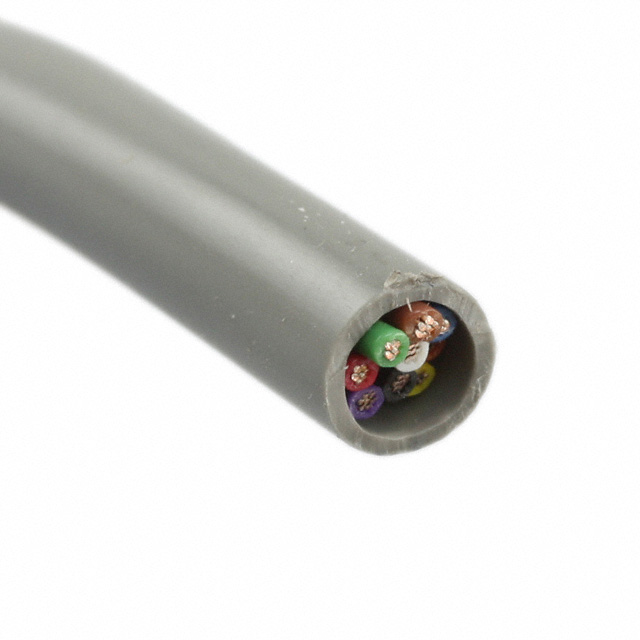

CABLE 9COND 22AWG GRAY 500'
| Part | Voltage | Length | Length | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Material | Conductor Material | Usage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 300 VDC | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 0.813 mm | 0.032 in | 22 AWG | 80 °C | -20 ░C | 9 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Communication Control | Gray | 6.32 mm | 0.249 in |
 Prysmian Group | 300 VDC | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 0.813 mm | 0.032 in | 22 AWG | 80 °C | -20 ░C | 9 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Communication Control | Gray | 6.32 mm | 0.249 in |
Prysmian Group | 300 VDC | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 0.813 mm | 0.032 in | 22 AWG | 80 °C | -20 ░C | 9 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Communication Control | Gray | 6.32 mm | 0.249 in |
Prysmian Group | 300 VDC | 3048 m | 10000 ft | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 0.813 mm | 0.032 in | 22 AWG | 80 °C | -20 ░C | 9 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Communication Control | Gray | 6.32 mm | 0.249 in |
