DF3-12S Series

Catalog

CONN RCPT 12POS 0.079 TIN PCB

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Shape	Insulation Material	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Contact Finish - Post	Connector Type	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Style	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Wire Type	Color	Wire Gauge	Cable Termination	Contact Finish	Features	Pitch [x]	Pitch [x]	Note	Contact Termination

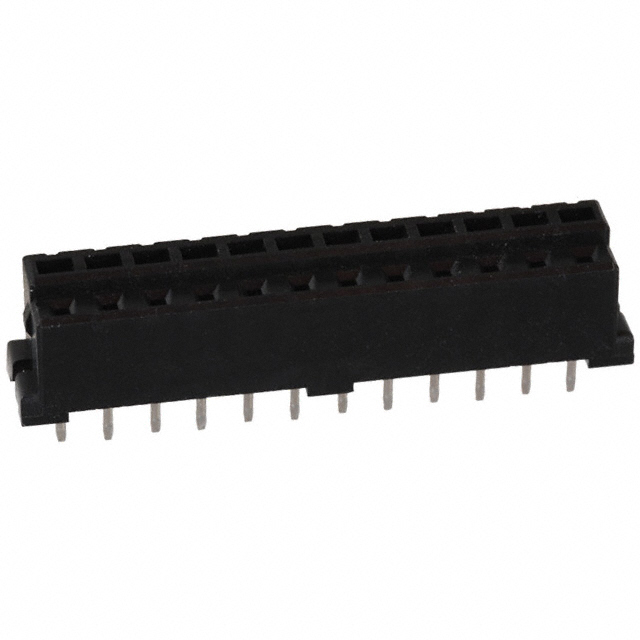

Hirose Electric Co Ltd DF3-12S-2DSA(25)	78.7 µin	2 µm	Square	Nylon Polyamide (PA)	Phosphor Bronze	30 VAC	78.7 µin	2 µm	0.079 "	2 mm	1	5.9 mm	0.232 in	12	3 A	0.118 in	3 mm	Solder	Black	Tin	Receptacle	6.6 mm	7.5 mm	Female Socket	85 °C	-30 ░C	Friction Lock	Through Hole	Board to Board Cable	All	UL94 V-0
Hirose Electric Co Ltd DF3-12S-2DSA(50)			Square	Nylon Polyamide (PA)	Phosphor Bronze	30 VAC			0.079 "	2 mm	1	5.9 mm	0.232 in	12	3 A	0.118 in	3 mm	Solder	Black	Tin	Receptacle	6.6 mm	7.5 mm	Female Socket	85 °C	-30 ░C	Friction Lock	Through Hole	Board to Board Cable	All	UL94 V-0	Gold
Hirose Electric Co Ltd DF3-12S-2R26(01)											1			12							Receptacle			Female Socket				Free Hanging (In-Line)					Discrete	Black	26 AWG	IDC	Gold	Closed End	0.079 in	2 mm
Hirose Electric Co Ltd DF3-12S-2R28(05)											1			12							Receptacle			Female Socket				Free Hanging (In-Line)					Discrete	Black	28 AWG	IDC	Tin	Closed End	0.079 in	2 mm

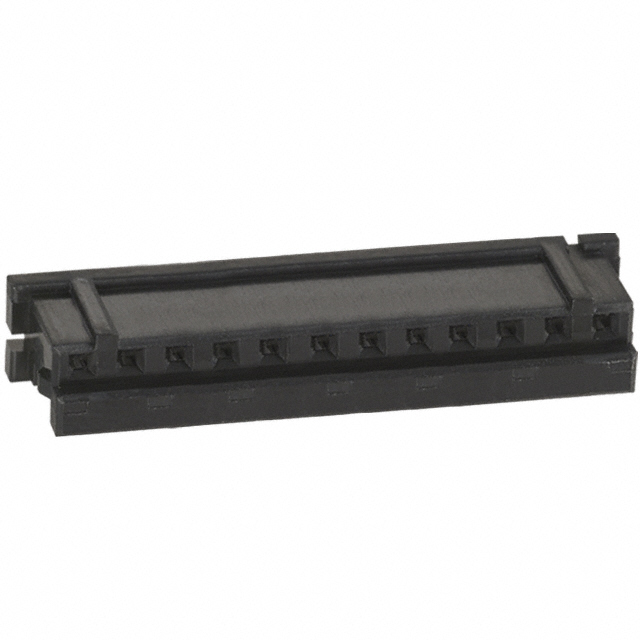

Hirose Electric Co Ltd DF3-12S-2C				Nylon Polyamide (PA)							1			12							Receptacle			Female Socket	105 ░C	-55 C		Free Hanging (In-Line)						Black					0.079 in	2 mm	Contacts Not Included	Crimp
