DF12NB(4.0) Series

Catalog

CONN HDR 50POS SMD GOLD

Part	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Number of Positions	Connector Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights

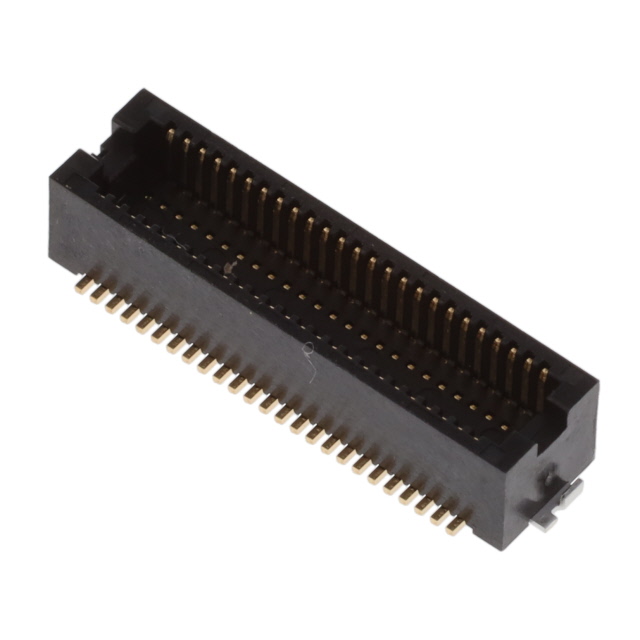

Hirose Electric Co Ltd DF12NB(4.0)-50DP-0.5V(51)	2	Surface Mount	0.203 çm	8 µin	Solder Retention	Gold	50	Header Outer Shroud Contacts	0.02 "	0.5 mm	3.3 mm	0.13 in	4 mm
Hirose Electric Co Ltd DF12NB(4.0)-60DP-0.5V(51)	2	Surface Mount	0.203 çm	8 µin	Solder Retention	Gold	60	Header Outer Shroud Contacts	0.02 "	0.5 mm	3.3 mm	0.13 in	4 mm

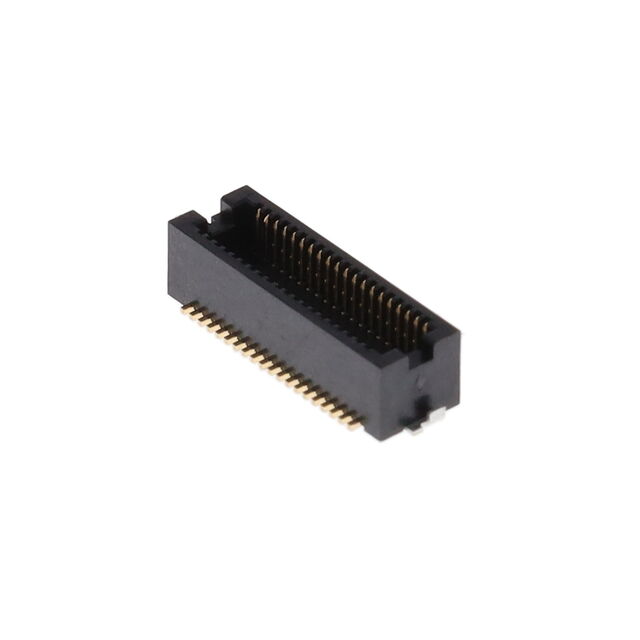

Hirose Electric Co Ltd DF12NB(4.0)-40DP-0.5V(51)	2	Surface Mount	0.203 çm	8 µin	Solder Retention	Gold	40	Header Outer Shroud Contacts	0.02 "	0.5 mm	3.3 mm	0.13 in	4 mm

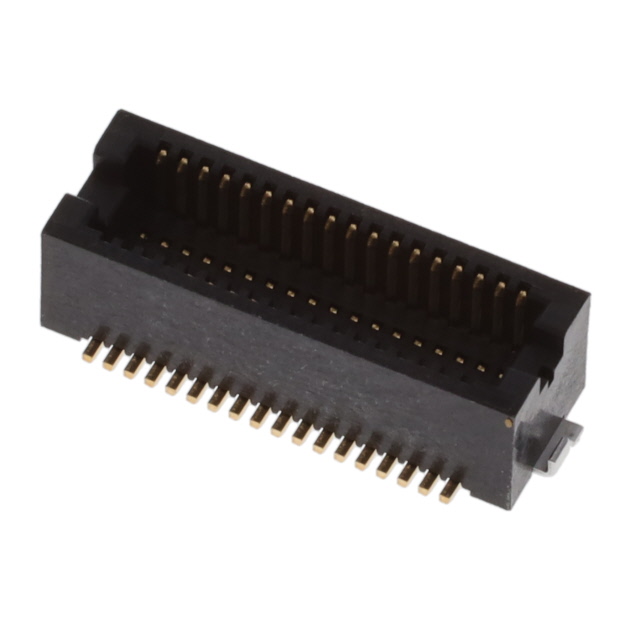

Hirose Electric Co Ltd DF12NB(4.0)-36DP-0.5V(51)	2	Surface Mount	0.203 çm	8 µin	Solder Retention	Gold	36	Header Outer Shroud Contacts	0.02 "	0.5 mm	3.3 mm	0.13 in	4 mm

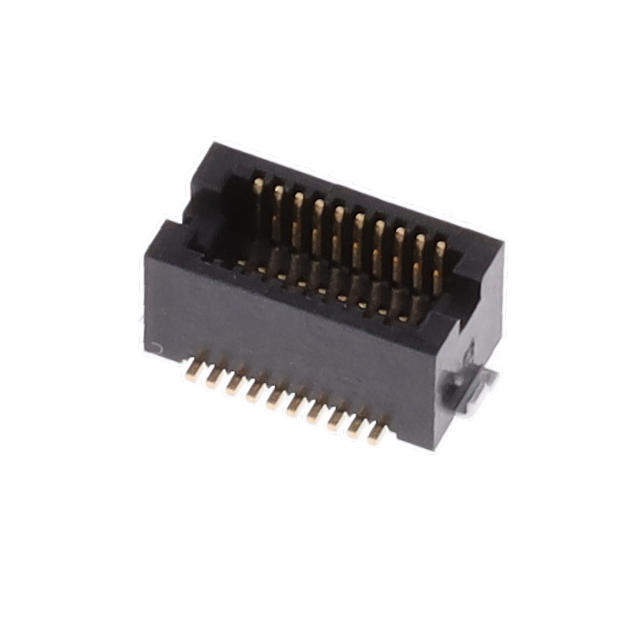

Hirose Electric Co Ltd DF12NB(4.0)-20DP-0.5V(51)	2	Surface Mount	0.203 çm	8 µin	Solder Retention	Gold	20	Header Outer Shroud Contacts	0.02 "	0.5 mm	3.3 mm	0.13 in	4 mm
