ATA6561 Series
Manufacturer: Microchip Technology
Beta
⌘K

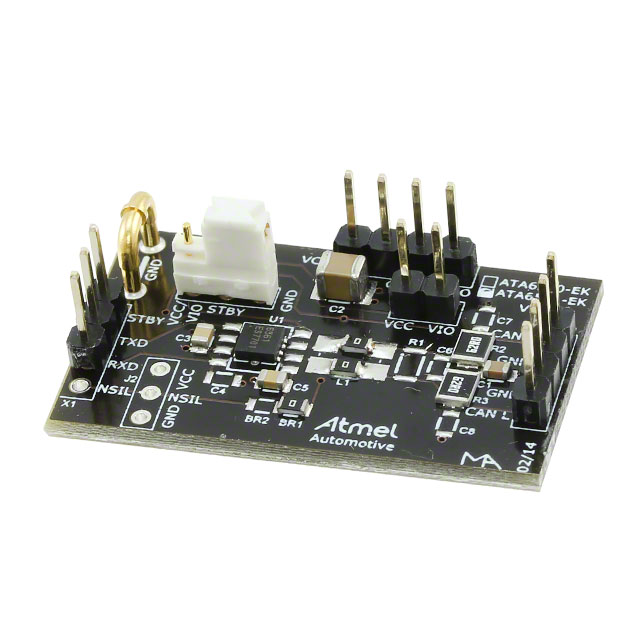

ATA6561-EK APID TOOLS ROHS COMPLIANT: YES
| Part | Supplied Contents | Type | Utilized IC / Part | Supplier Device Package | Protocol | Package / Case | Package / Case [y] | Package / Case [x] | Receiver Hysteresis | Qualification | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Data Rate | Duplex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Board(s) | Interface | ATA6561 | |||||||||||||||
 Microchip Technology | Transceiver | 8-SO | CANbus | 8-SOIC | 3.9 mm | 0.154 in | 120 mV | AEC-Q100 | 4.5 V | 5.5 V | Surface Mount | Automotive | 150 °C | -40 °C | 5 MBd | |||
 Microchip Technology | Transceiver | 8-SOIC | CANbus | 8-SOIC | 3.9 mm | 0.154 in | 120 mV | AEC-Q100 | 4.5 V | 5.5 V | Surface Mount | Automotive | 150 °C | -40 °C | 5 MBd | Half | ||
 Microchip Technology | Transceiver | 8-VDFN (3x3) | CANbus | 8-VDFN Exposed Pad | 120 mV | AEC-Q100 | 4.5 V | 5.5 V | Surface Mount Wettable Flank | Automotive | 150 °C | -40 °C | 5 MBd |
