BXRE-20 Series

Manufacturer: BRIDGELUX

Catalog

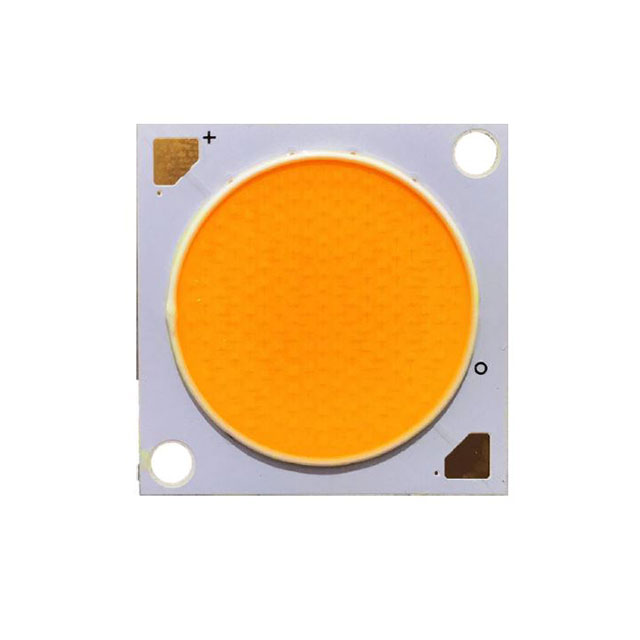

LED COB V22 WARM WHT SQU 2000K

Part	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Height [z]	CCT (K)	CCT (K)	Type	Lens Type	Viewing Angle	Configuration	Current - Test	Voltage - Forward (Vf) (Typ)	Temperature - Test	Color	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]
BRIDGELUX BXRE-20B6501-C-73	65	9058 lm 9791 lm	134 lm/W 138 lm/W	22.6 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square	1.44 A	50.7 V	85 °C	Warm White	2.88 A	28 mm	28 mm
BRIDGELUX BXRE-20B4001-C-73	65	5302 lm	133 lm/W	19.2 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square	1.17 A	34 V	85 °C	Warm White	2.34 A	24 mm	24 mm
BRIDGELUX BXRE-20B6501-D-73	65	5928 lm 6405 lm	137 lm/W 141 lm/W	22.6 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square		33.4 V	85 °C	Warm White	2.8 A	28 mm	28 mm
BRIDGELUX BXRE-20B2001-B-73	65	2038 lm 2102 lm	134 lm/W 138 lm/W	14 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square	450 mA	33.9 V	85 °C	Warm White	900 mA	19 mm	19 mm
BRIDGELUX BXRE-20B1001-B-73	65	1203 lm	131 lm/W	10.2 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square	270 mA	34 V	85 °C	Warm White	540 mA	13.5 mm	13.5 mm
BRIDGELUX BXRE-20B2001-C-73	65	2853 lm 2943 lm	134 lm/W 138 lm/W	14 mm	1.7 mm	2000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	Flat	120 °	Square	630 mA	33.9 V	85 °C	Warm White	1.26 A	19 mm	19 mm
