887-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Card Type	Color	Mounting Type	Pitch	Pitch	Gender	Number of Positions/Bay/Row	Flange Feature	Termination	Contact Type	Read Out	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 887-066-520-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33	4-40 Flush Mount Threaded Insert Top Opening	Solder	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C
EDAC Inc. 887-066-559-812	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Right Angle Through Hole	3.96 mm	0.156 in	Female	33	Side Mount Opening Unthreaded	Solder	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.128 "	3.25 mm
EDAC Inc. 887-066-555-808	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Board Edge Straddle Mount	3.96 mm	0.156 in	Female	33	4-40 Threaded Insert Top Mount Opening	Solder	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C			Card Extender
EDAC Inc. 887-066-558-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Right Angle Through Hole	3.96 mm	0.156 in	Female	33	4-40 Flush Mount Threaded Insert Top Opening	Solder	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C
EDAC Inc. 887-066-544-802	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33		Wire Wrap	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.128 "	3.25 mm
EDAC Inc. 887-066-500-204	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.156 "	3.96 mm
EDAC Inc. 887-066-541-812	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33	Side Mount Opening Unthreaded	Wire Wrap	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.128 "	3.25 mm
EDAC Inc. 887-066-541-804	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33		Wire Wrap	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.156 "	3.96 mm

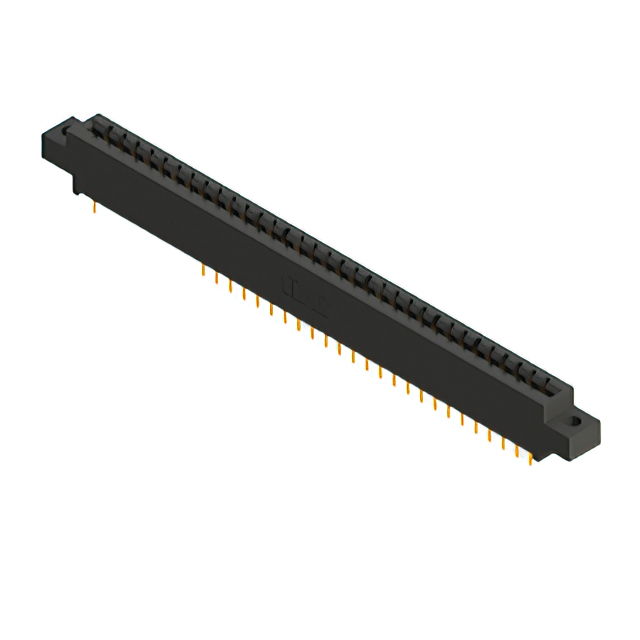

EDAC Inc. 887-066-542-804	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Through Hole	3.96 mm	0.156 in	Female	33		Wire Wrap	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.156 "	3.96 mm

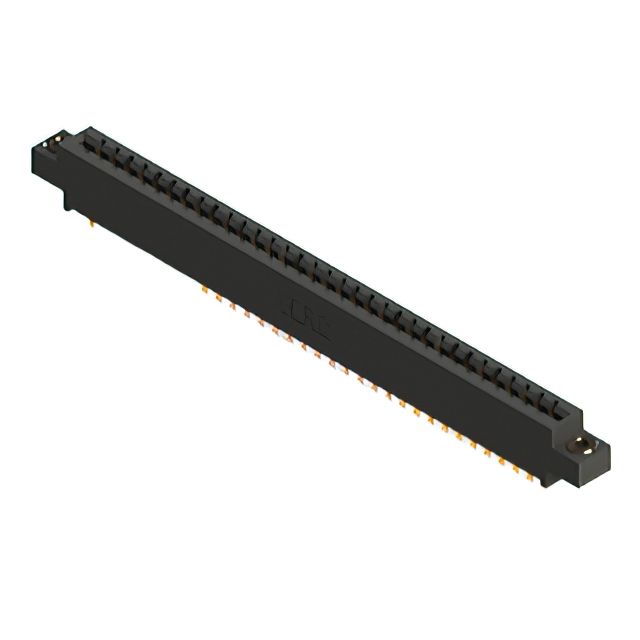

EDAC Inc. 887-066-555-803	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	66	2	Non Specified - Dual Edge	Black	Board Edge Straddle Mount	3.96 mm	0.156 in	Female	33	Floating Bobbin Top Mount Opening	Solder	Cantilever	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.116 "	2.95 mm	Card Extender
