E2204S Series
Manufacturer: Prysmian Group
Beta
⌘K

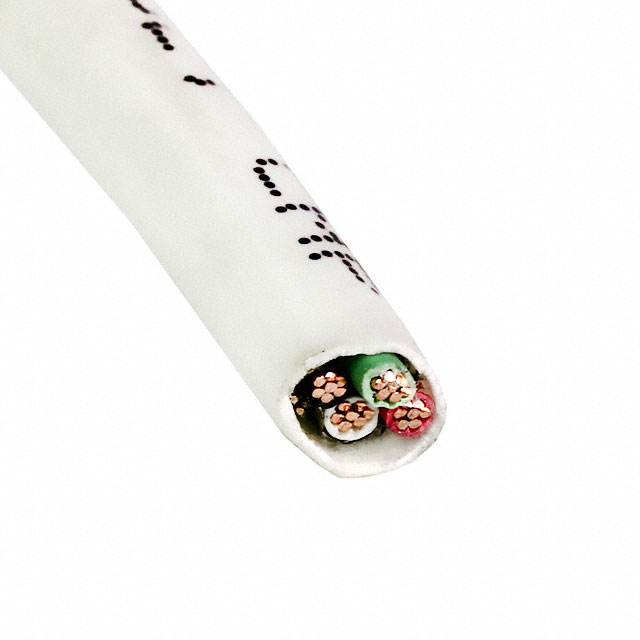

CABLE 4COND 18AWG WHITE SHLD 50'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Material | Length | Length | Features | Wire Gauge | Jacket (Insulation) Material | Shield Type | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Voltage | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 25 ft 100 ft | 7.62 m 30.5 m | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 15.24 m 304.8 m | 50 ft 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | White | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | ||
 Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 25 ft 100 ft | 7.62 m 30.5 m | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | ||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | Flexfoil® Flexfoilź | 100 % | ||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 304.8 m | 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | ||||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 25 ft | 7.62 m | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 304.8 m | 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | White | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | Flexfoil® | 100 % |
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 152.4 m | 500 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | Flexfoil® | 100 % | ||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 25 ft | 7.62 m | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 152.4 m 304.8 m | 500 ft 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | Flexfoil® | 100 % |
 Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Copper Bare | 304.8 m | 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Yellow | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | |||||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Copper Bare | 304.8 m | 1000 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Yellow | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC | Flexfoil® | 100 % | |||
Prysmian Group | 26 AWG | 7 | 4 | Poly-Vinyl Chloride (PVC) | 0.185 in | 4.7 mm | Alarm Security Sound | Copper Bare | 152.4 m | 500 ft | Drain Wire | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Foil | Natural | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Multi-Conductor | 300 VDC |
