DF3-11P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

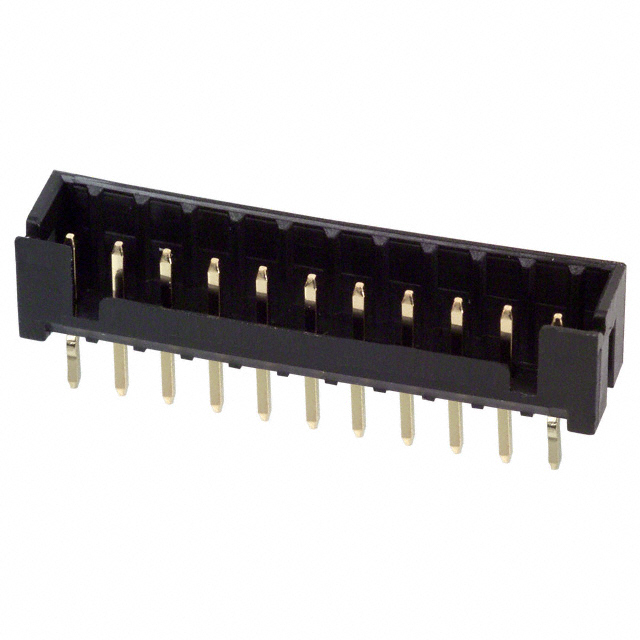

CONN HEADER VERT 11POS 2MM
| Part | Number of Positions | Contact Shape | Shrouding | Termination | Insulation Height | Insulation Height | Mounting Type | Style | Contact Type | Insulation Color | Current Rating (Amps) | Material Flammability Rating | Connector Type | Fastening Type | Contact Finish - Mating | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Overall Contact Length | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 11 | Square | Shrouded - 4 Wall | Press-Fit Solder | 0.197 " | 5 mm | Through Hole | Board to Board Cable | Male Pin | Black | 3 A | UL94 V-0 | Header | Push-Pull | Gold | Nylon Polyamide (PA) | 8 µin | 0.203 µm | 0.079 " | 2 mm | All | -55 C | 105 ░C | Brass | 0.114 in | 2.9 mm | 1 | 0.299 in 7.6 mm | 0.122 in | 3.1 mm |
