1010913 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

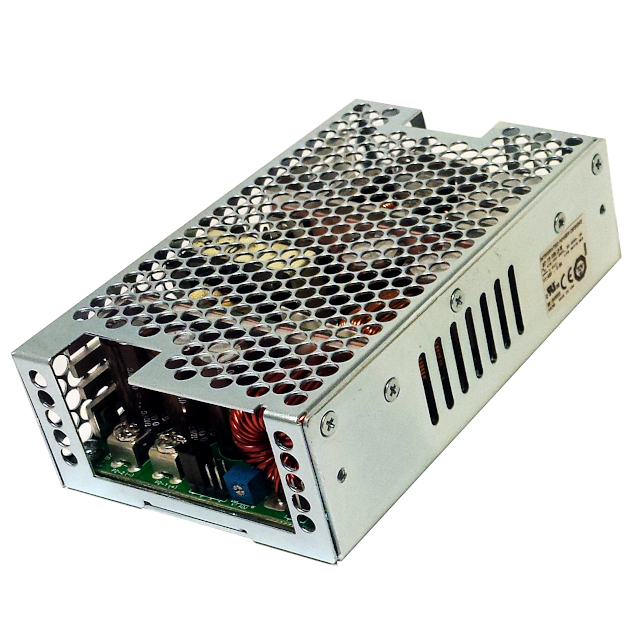

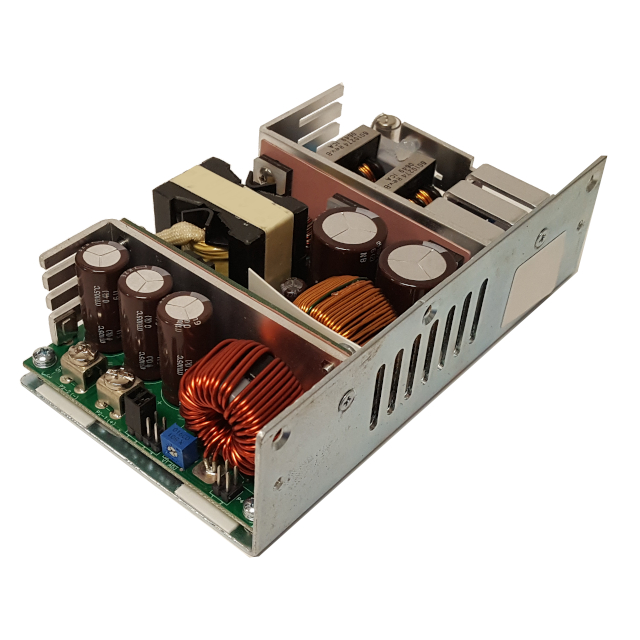

AC/DC CONVERTER 12V 175W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Power (Watts) | Number of Outputs | Applications | Standard Number | Type | Approval Agency | Features | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 38.9 mm | 79.2 mm | 133.1 mm | 5.24 " | 1.53 in | 3.12 in | 70 °C | 0 °C | 12 V | 14.6 A | 100 VAC | 240 VAC | Chassis Mount | 175 W | 1 | ITE (Commercial) Medical | 60601-1; 62368-1 | Chassis | CE cURus TUV UKCA | Adjustable Output Remote Sense Universal Input | 85 % |
 Integrated Power Designs | 38.9 mm | 79.2 mm | 133.1 mm | 5.24 " | 1.53 in | 3.12 in | 70 °C | 0 °C | 12 V | 14.6 A | 100 VAC | 240 VAC | Chassis Mount | 175 W | 1 | ITE (Commercial) Medical | 60601-1; 62368-1 | Enclosed | CE cURus TUV UKCA | Adjustable Output Remote Sense Universal Input | 85 % |
