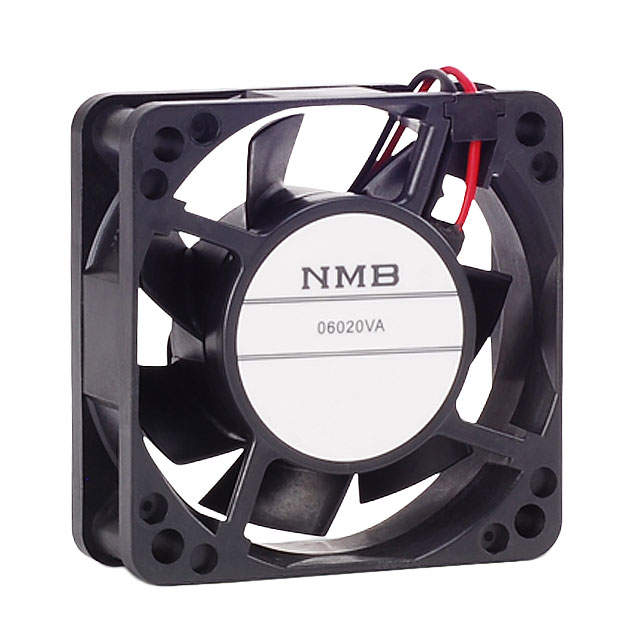

06020VA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, BALL BEARING, 24.72 CFM
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Air Flow | Air Flow | Termination | Weight [custom] | Weight [custom] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Bearing Type | Features | Power (Watts) | RPM | Noise | Width [y] | Static Pressure | Static Pressure | Fan Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | Plastic | 150 mA | 10 VDC | 26.4 VDC | 0.692 m³/min | 24.7 CFM | 2 Wire Leads | 79.83 g | 0.176 lb | 60 mm | 60 mm | 24 VDC | Ball | Auto Restart | 3.6 W | 6900 RPM | 42 dB | 20 mm | 99.6 Pa | 0.4 in H2O | Tubeaxial | IP69K - Dust Tight High Temp Water Jets Waterproof | 70 °C | -10 °C |
