APTGT450DA60G-Module Series

600V/Boost chopper/IGBT modules

Catalog

600V/Boost chopper/IGBT modules

Part	Input Capacitance (Cies) @ Vce	IGBT Type	Input	Package / Case	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Mounting Type

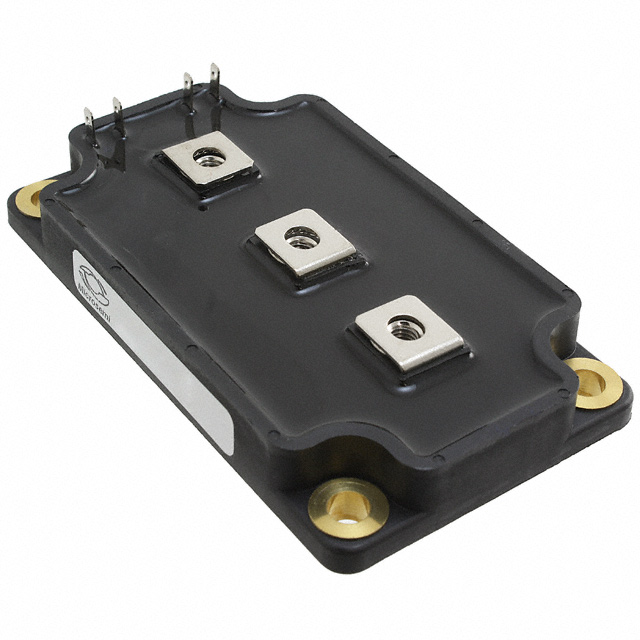

Microchip Technology APTGT450A60G	37 nF	Trench Field Stop	Standard	SP6	500 çA	-40 C	175 °C	550 A	Half Bridge	600 V	1.8 V	SP6	Chassis Mount
Microchip Technology APTGT450DA60G	37 nF	Trench Field Stop	Standard	SP6	500 çA	-40 C	175 °C	550 A	Single	600 V	1.8 V	SP6	Chassis Mount
Microchip Technology APTGT450SK60G	37 nF	Trench Field Stop	Standard	SP6	500 çA	-40 C	175 °C	550 A	Single	600 V	1.8 V	SP6	Chassis Mount

600V/Boost chopper/IGBT modules

• + Configuration: Boost chopper

• + VCES (V): 600

• + VCESat (V): 1.4

• + Current (A) Tc=80C: 450

• + Silicon type: TRENCH 3 IGBT

• + Package: SP6C
