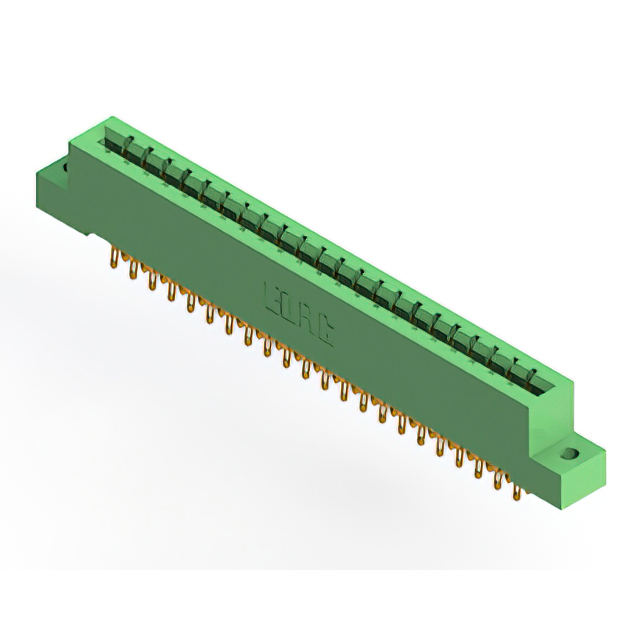

833-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 44POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Color | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Read Out | Number of Positions | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Gender | Flange Feature | Contact Finish | Number of Positions/Bay/Row | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | 4-40 Threaded Insert Top Mount Opening | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Floating Bobbin Flush Mount | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | Card Extender | 0.116 " | 2.95 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Side Mount Opening Unthreaded | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Wire Wrap | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Floating Bobbin Flush Mount | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Side Mount Opening Unthreaded | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Wire Wrap | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Floating Bobbin Flush Mount | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Wire Wrap | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Flush Mount Top Opening Unthreaded | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | Card Extender | 0.128 " | 3.25 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | 44 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Gold | 22 | Non Specified - Dual Edge | 125 °C | -40 C | Solder | 0.128 " | 3.25 mm |
