C0456 Series

Catalog

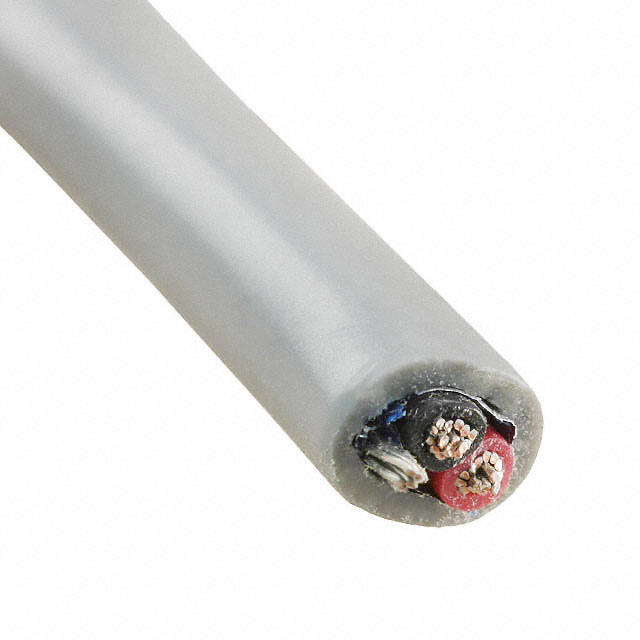

CABLE 2COND 16AWG GRAY SHLD 100'

Part	Voltage	Conductor Strand [custom]	Conductor Strand [diameter]	Usage	Length [x]	Length [x]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Number of Conductors	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Features	Wire Gauge	Shield Material	Cable Type	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Ratings
Prysmian Group C0456A.38.10	300 VDC	19	0.0117 in	Communication Control	100 ft	30.5 m	Copper Annealed Tinned	0.243 in	6.17 mm	15.24 m 152.4 m	50 ft 500 ft	2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG	Flexfoil®	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.40.10	300 VDC	19	0.0117 in	Communication Control			Copper Annealed Tinned	0.243 in	6.17 mm			2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG	Flexfoil®	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.41.10	300 VDC	19	0.0117 in	Communication Control	100 ft	30.5 m	Copper Annealed Tinned	0.243 in	6.17 mm	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG		Multi-Conductor	Poly-Vinyl Chloride (PVC)		Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.46.10	300 VDC	19	0.0117 in	Communication Control			Copper Annealed Tinned	0.243 in	6.17 mm			2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG		Multi-Conductor	Poly-Vinyl Chloride (PVC)		Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.38.10	300 VDC	19	0.0117 in	Communication Control	100 ft	30.5 m	Copper Annealed Tinned	0.243 in	6.17 mm	15.24 m 152.4 m	50 ft 500 ft	2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG		Multi-Conductor	Poly-Vinyl Chloride (PVC)		Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.41.10	300 VDC	19	0.0117 in	Communication Control			Copper Annealed Tinned	0.243 in	6.17 mm	15.24 m 304.8 m	50 ft 1000 ft	2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG	Flexfoil®	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	ASTM B-33
Prysmian Group C0456A.46.10	300 VDC	19	0.0117 in	Communication Control			Copper Annealed Tinned	0.243 in	6.17 mm			2	Gray	-20 ░C	105 ░C	0.94 mm	0.037 in	Foil	Drain Wire	16 AWG	Flexfoil®	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	ASTM B-33
