DF19G Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

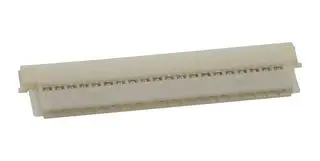

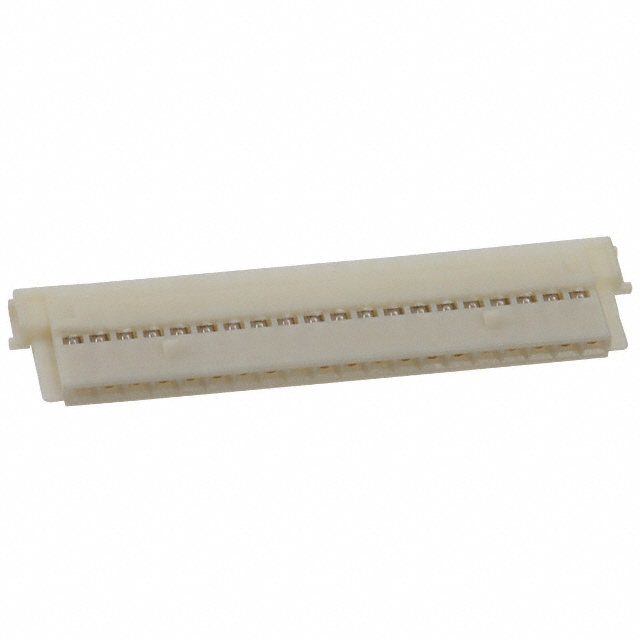

CONN PLUG 20POS IDC 40AWG GOLD
| Part | Number of Positions | Number of Rows | Cable Termination | Contact Type | Connector Type | Contact Finish | Pitch | Pitch | Wire Gauge | Mounting Type | Color | Wire Type | Fastening Type | Material Flammability Rating | Style | Shrouding | Number of Positions Loaded | Termination | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Voltage Rating | Insulation Material | Features | Insulation Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Tool Type | Contact Finish - Mating | Note | Contact Termination | Housing Color | Current Rating (Amps) | Flat Flex Type | Cable End Type | FFC, FCB Thickness [custom] | Housing Material | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 20 | 1 | IDC | Female Socket | Plug | Gold | 1 mm | 0.039 in | 40 AWG | Free Hanging (In-Line) | Beige | Ribbon Cable | |||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 20 | 1 | IDC | Female Socket | Plug | Gold | 1 mm | 0.039 in | 40 AWG | Free Hanging (In-Line) | Beige | Ribbon Cable | |||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 20 | 1 | Male Pin | Receptacle | Right Angle Surface Mount | Friction Lock | UL94 V-0 | Board to Cable/Wire | Shrouded - 3 Wall | All | Solder | 1 mm | 0.039 in | 1.65 mm | 0.065 in | 100 V | Nylon Polyamide (PA) | Glow Wire Compliant Shielded Solder Retention | Black | Phosphor Bronze | 85 °C | -35 °C | |||||||||||||||||||
 Hirose Electric Co Ltd | Grounding Plates | Insertion Tool | |||||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 14 | 1 | Male Pin | Receptacle | Right Angle Surface Mount | Friction Lock | UL94 V-0 | Board to Cable/Wire | Shrouded - 3 Wall | All | Solder | 1 mm | 0.039 in | 1.65 mm | 0.065 in | 100 V | Nylon Polyamide (PA) | Glow Wire Compliant Shielded Solder Retention | Black | Phosphor Bronze | 85 °C | -35 °C | Gold | ||||||||||||||||||

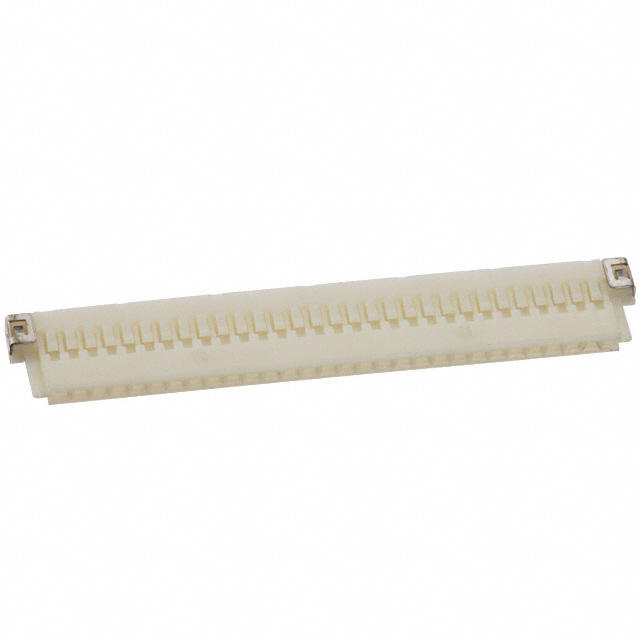

 Hirose Electric Co Ltd | 30 | 1 | Female Socket | Plug | 1 mm | 0.039 in | Free Hanging (In-Line) | Beige | Contacts Not Included | Crimp | |||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 20 | Gold | 1 mm | 0.039 in | Free Hanging (In-Line) | UL94 V-0 | IDC | 100 V | Phosphor Bronze | 85 °C | -35 °C | Beige | 0.5 A | FPC | Tapered | 0.14 mm | Polyamide (PA) Nylon | Receptacle | |||||||||||||||||||||||
 Hirose Electric Co Ltd | 14 | 1 | IDC | Female Socket | Plug | Gold | 1 mm | 0.039 in | 40 AWG | Free Hanging (In-Line) | Beige | Ribbon Cable | |||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Grounding Plates | Insertion Tool | |||||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 20 | 1 | Female Socket | Plug | 1 mm | 0.039 in | Free Hanging (In-Line) | Beige | Contacts Not Included | Crimp |
