PL75 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

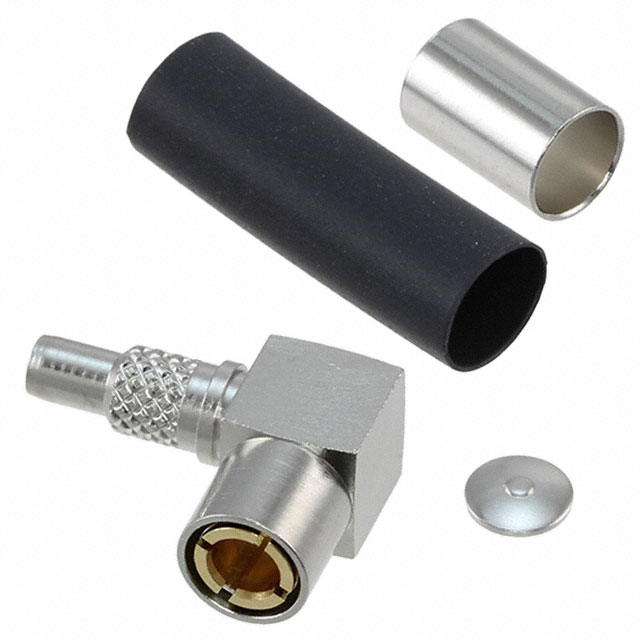

CONN UMC PLUG R/A 75 OHM SOLDER
| Part | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mating Cycles | Body Material | Dielectric Material | Mounting Type | Center Contact Material | Shield Termination | Fastening Type | Connector Style | Number of Ports | Contact Termination | Frequency - Max [Max] | Connector Type | Housing Color | Impedance | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | 85 °C | -30 ░C | Nickel | 500 | Brass | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) Right Angle | Beryllium Copper | Crimp | Snap-On | Ultra Miniature (UM) | 1 | Solder | 1.5 GHz | Female Socket Plug | Silver | 75 Ohms | |
 Hirose Electric Co Ltd | Gold | 85 °C | -30 ░C | Nickel | 500 | Brass | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) Right Angle | Beryllium Copper | Crimp | Snap-On | Ultra Miniature (UM) | 1 | Solder | 1.5 GHz | Female Socket Plug | Silver | 75 Ohms | 1 Connector 1 Heat Shrink |
