ER8-10S Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 10POS SMD GOLD
| Part | Connector Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Mated Stacking Heights | Contact Finish | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

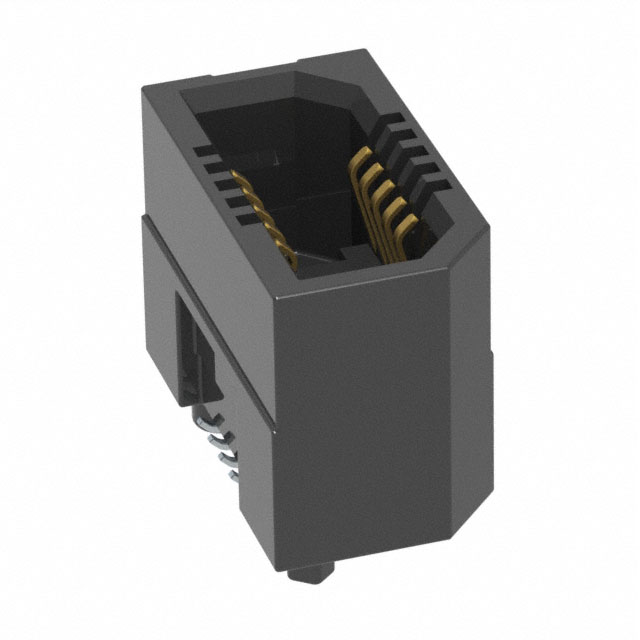

 Hirose Electric Co Ltd | Receptacle Outer Shroud Contacts | 0.8 mm | 0.031 in | 7.24 mm | 0.285 in | 9 mm 12 mm | Gold | 2 | Board Guide | 30 Áin | 0.76 Ám | 10 | Surface Mount |

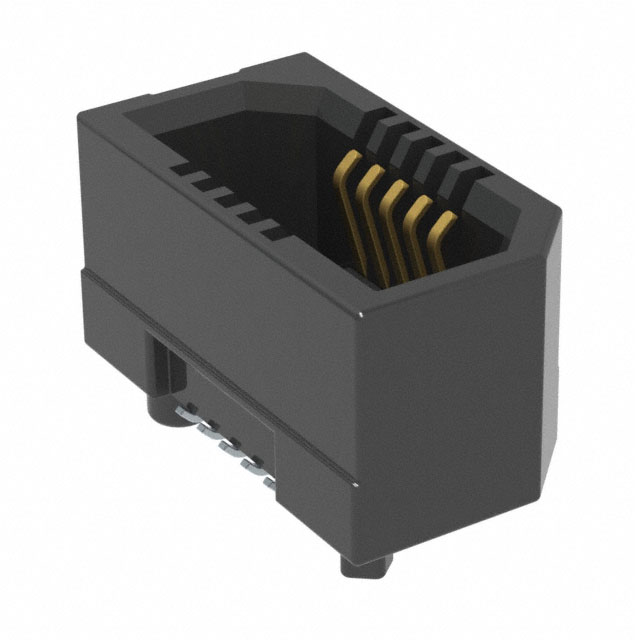

 Hirose Electric Co Ltd | Receptacle Outer Shroud Contacts | 0.8 mm | 0.031 in | 5.35 mm | 0.211 in | 7 mm 10 mm | Gold | 2 | Board Guide | 30 Áin | 0.76 Ám | 10 | Surface Mount |
