A3B-8PA Series

Catalog

CONN HEADER VERT 8POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights [z]	Style	Shrouding	Pitch - Mating	Pitch - Mating	Voltage Rating	Termination	Insulation Material	Fastening Type	Mounting Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Material	Contact Shape	Number of Rows [custom]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd A3B-8PA-2DSA(71)	78.7 µin	2 µm	6 mm 8.8 mm	Board to Board Cable	Unshrouded	0.079 "	2 mm	200 VAC	Solder	Nylon Polyamide (PA)	Push-Pull	Through Hole	All	7.9 mm	0.311 in	Male Pin	1.8 mm	0.071 in	2 mm	0.079 in	-55 C	85 °C	Black	Brass	Square	2	Gold	3.5 mm	0.138 in	2.6 mm	0.102 in	Header	Flash	8	UL94 V-0	Tin
Hirose Electric Co Ltd A3B-8PA-2DS(71)				Board to Board Cable	Unshrouded	0.079 "	2 mm	200 VAC	Kinked Pin Solder	Nylon Polyamide (PA)	Push-Pull	Right Angle Through Hole	All			Male Pin			2 mm	0.079 in	-55 C	85 °C	Black	Brass	Square	2	Gold	3.5 mm	0.138 in	2.6 mm	0.102 in	Header	Flash	8	UL94 V-0	Tin	4 mm	0.157 in
Hirose Electric Co Ltd A3B-8PA-2DSA(74)	78.7 µin	2 µm	6 mm 8.8 mm	Board to Board Cable	Unshrouded	0.079 "	2 mm	200 VAC	Solder	Nylon Polyamide (PA)	Push-Pull	Through Hole	All	7.9 mm	0.311 in	Male Pin	1.8 mm	0.071 in	2 mm	0.079 in	-55 C	85 °C	Black	Brass	Square	2	Gold	3.5 mm	0.138 in	2.6 mm	0.102 in	Header		8	UL94 V-0	Tin			0.5 µm	19.7 µin
Hirose Electric Co Ltd A3B-8PA-2DS(81)				Board to Board Cable	Unshrouded	0.079 "	2 mm	200 VAC	Kinked Pin Solder	Nylon Polyamide (PA)	Push-Pull	Right Angle Through Hole	All			Male Pin			2 mm	0.079 in	-55 C	85 °C	Black	Brass	Square	2	Gold	3.5 mm	0.138 in	2.6 mm	0.102 in	Header		8	UL94 V-0	Tin	4 mm	0.157 in	0.051 µm	2 µin

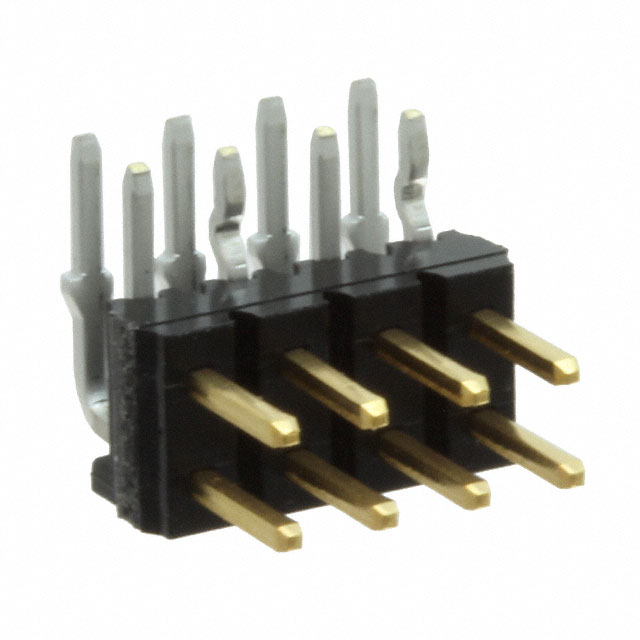

Hirose Electric Co Ltd A3B-8PA-2DS(51)				Board to Board Cable	Unshrouded	0.079 "	2 mm	200 VAC	Kinked Pin Solder	Nylon Polyamide (PA)	Push-Pull	Right Angle Through Hole	All			Male Pin			2 mm	0.079 in	-55 C	85 °C	Black	Brass	Square	2	Gold	3.5 mm	0.138 in	2.6 mm	0.102 in	Header	Flash	8	UL94 V-0	Tin	4 mm	0.157 in
