3612KL Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 32 MM, BALL BEARING, 69.9 CFM

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Noise	Width [y]	Voltage - Rated	Termination	RPM	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Air Flow	Air Flow	Bearing Type	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features
NMB TECHNOLOGIES 3612KL-04W-B50-E00	Plastic	100000 Hrs	Plastic	0.47 A	13.8 VDC	6 VDC	Tubeaxial	43.5 dB	32 mm	12 VDC	2 Wire Leads	3800 RPM	92 mm	92 mm	CE CSA UL VDE	1.96 m³/min	69.9 CFM	Ball	0.333 in H2O	83 Pa	0.507 lb	229.97 g	-10 °C	60 °C	5.64 W
NMB TECHNOLOGIES 3612KL-05W-B40-E00	Plastic	100000 Hrs	Plastic				Tubeaxial	38 dB(A)	32 mm	24 VDC	2 Wire Leads	3200 RPM	92 mm	92 mm	CE CSA UL VDE	1.64 m³/min	58.6 CFM	Ball	0.245 in H2O	61 Pa	0.507 lb	229.97 g	-10 °C	60 °C	3.84 W
NMB TECHNOLOGIES 3612KL-05W-B50-B00	Plastic	100000 Hrs	Plastic	0.25 A			Tubeaxial	43.5 dB	32 mm	24 VDC	2 Wire Leads	3800 RPM	92 mm	92 mm	CE CSA UL VDE	1.96 m³/min	69.9 CFM	Ball	0.333 in H2O	83 Pa	0.507 lb	229.97 g	-10 °C	60 °C	6 W

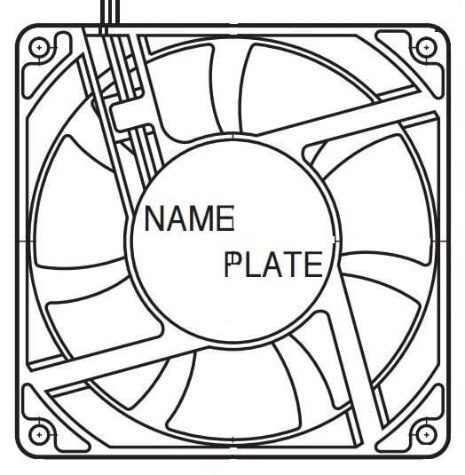

NMB TECHNOLOGIES 3612KL-05W-B49-E50	Plastic	100000 Hrs	Plastic				Tubeaxial	38 dB(A)	32 mm	24 VDC	3 Wire Leads	3200 RPM	92 mm	92 mm	CE CSA UL VDE	1.64 m³/min	58.6 CFM	Ball	0.245 in H2O	61 Pa	0.507 lb	229.97 g	-10 °C	60 °C	3.84 W	Speed Sensor (Tach)
NMB TECHNOLOGIES 3612KL-04W-B30-E00	Plastic	100000 Hrs	Plastic	0.21 A	13.8 VDC	6 VDC	Tubeaxial	34 dB(A)	32 mm	12 VDC	2 Wire Leads	2600 RPM	92 mm	92 mm	CE CSA UL VDE	1.32 m³/min	47.3 CFM	Ball	0.165 in H2O	41.1 Pa	0.507 lb	229.97 g	-10 °C	60 °C	2.52 W
NMB TECHNOLOGIES 3612KL-05W-B50-E00	Plastic	100000 Hrs	Plastic	0.25 A			Tubeaxial	43.5 dB	32 mm	24 VDC	2 Wire Leads	3800 RPM	92 mm	92 mm	CE CSA UL VDE	1.96 m³/min	69.9 CFM	Ball	0.333 in H2O	83 Pa	0.507 lb	229.97 g	-10 °C	60 °C	6 W
NMB TECHNOLOGIES 3612KL-05W-B30-B00	Plastic	100000 Hrs	Plastic	100 mA			Tubeaxial	34 dB(A)	32 mm	24 VDC	2 Wire Leads	2600 RPM	92 mm	92 mm	CE CSA UL VDE	1.32 m³/min	47.3 CFM	Ball	0.165 in H2O	41.1 Pa	0.507 lb	229.97 g	-10 °C	60 °C	2.4 W
NMB TECHNOLOGIES 3612KL-07W-B59-E50	Plastic	100000 Hrs	Plastic				Tubeaxial		32 mm	48 VDC	3 Wire Leads		92 mm	92 mm	CE CSA UL VDE			Ball			0.507 lb	229.97 g	-10 °C	60 °C		Speed Sensor (Tach)
NMB TECHNOLOGIES 3612KL-04W-B59-B50	Plastic	100000 Hrs	Plastic	0.47 A	13.8 VDC	6 VDC	Tubeaxial	43.5 dB	32 mm	12 VDC	3 Wire Leads	3800 RPM	92 mm	92 mm	CE CSA UL VDE	1.96 m³/min	69.9 CFM	Ball	0.333 in H2O	83 Pa	0.507 lb	229.97 g	-10 °C	60 °C	5.64 W	Speed Sensor (Tach)
NMB TECHNOLOGIES 3612KL-05W-B30-E00	Plastic	100000 Hrs	Plastic	100 mA			Tubeaxial	34 dB(A)	32 mm	24 VDC	2 Wire Leads	2600 RPM	92 mm	92 mm	CE CSA UL VDE	1.32 m³/min	47.3 CFM	Ball	0.165 in H2O	41.1 Pa	0.507 lb	229.97 g	-10 °C	60 °C	2.4 W
