34LC02 Series

2Kb I2C compatible Serial Present Detect (SPD) Serial EEPROM for DDR3 DIMM modules

Catalog

2Kb I2C compatible Serial Present Detect (SPD) Serial EEPROM for DDR3 DIMM modules

Part	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Write Cycle Time - Word, Page	Technology	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Memory Organization [custom]	Memory Organization [custom]	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Access Time	Mounting Type	Memory Interface	Package / Case [y]	Package / Case [x]	Package / Case [custom]

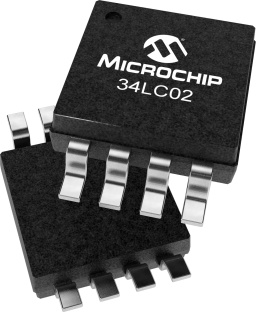

Microchip Technology 34LC02-I/MS	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02T-I/MNY	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	8-WFDFN Exposed Pad			8-TDFN (2x3)	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02T-E/SN	EEPROM	125 °C	-40 °C	256 B	5 ms	EEPROM	8-SOIC			8-SOIC	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C	3.9 mm	0.154 in
Microchip Technology 34LC02T-E/OT	EEPROM	125 °C	-40 °C	256 B	5 ms	EEPROM	SOT-23-6			SOT-23-6	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02T-I/OT	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	SOT-23-6			SOT-23-6	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02T-I/SN	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	8-SOIC			8-SOIC	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C	3.9 mm	0.154 in
Microchip Technology 34LC02-E/MS	EEPROM	125 °C	-40 °C	256 B	5 ms	EEPROM	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02-I/ST	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	8-TSSOP	0.173 "		8-TSSOP	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C			4.4 mm
Microchip Technology 34LC02T-I/MS	EEPROM	85 °C	-40 °C	256 B	5 ms	EEPROM	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C
Microchip Technology 34LC02-E/ST	EEPROM	125 °C	-40 °C	256 B	5 ms	EEPROM	8-TSSOP	0.173 "		8-TSSOP	8	256	Non-Volatile	5.5 V	2.2 V	400 ns	Surface Mount	I2C			4.4 mm

Catalog

2Kb I2C compatible Serial Present Detect (SPD) Serial EEPROM for DDR3 DIMM modules

Key Features

• * Permanent and Resettable Software Write-Protect

• for lower half of the array (00h-7Fh)

• * Low-power CMOS technology:

- Read current 1 mA, typical

- Standby current, 100 nA, typical

• * 2-wire serial interface bus, I2C™ compatible

• * Cascadable up to eight devices

• * Schmitt Trigger inputs for noise suppression

• * Output slope control to eliminate ground bounce

• * 100 kHz and 400 kHz compatibility

• * 1 MHz clock for LC versions

• * Page write time 3 ms, typical

• * Self-timed erase/write cycle

• * 16-byte page write buffer

• * ESD protection > 4,000V

• * Software write protection for lower 128 bytes

• * Hardware write protection for entire array

• * More than 1 million erase/write cycles

• * Data retention > 200 years

• * 8-lead PDIP, SOIC, TSSOP, MSOP and DFN

• packages

• * Pb-free and RoHS compliant

• * Available for extended temperature ranges:

- Industrial (I): -40°C to +85°C

- Automotive (E): -40°C to +125°C

Description

The Microchip Technology Inc. 34VL02/34AA02/ 34LC02 (34XX02\*) is a 2 Kbit Electrically Erasable PROM capable of operation across a broad voltage range (1.5V to 5.5V). This device has two software write-protect features for the lower half of the array, as well as an external pin that can be used to write-protect the entire array. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.5V, with standby and active currents of only 100 nA and 1 mA, respectively. The 34XX02 also has a page write capability for up to 16 bytes of data. The 34XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, MSOP and DFN packages.
