HA216P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

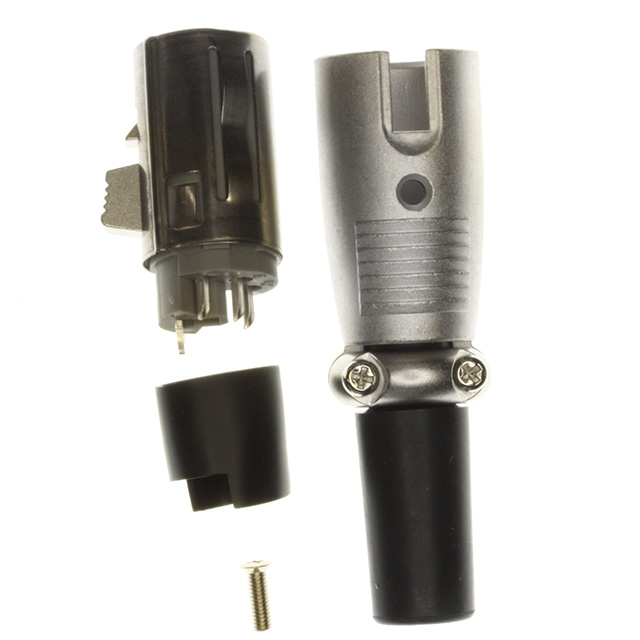

CONN PLUG FMALE 4P SOLDER CUP
| Part | Number of Positions | Mounting Type | Connector Type | Applications | Voltage Rating | Orientation | Contact Material | Fastening Type | Color | Shell Material | Current Rating (Amps) | Features | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Backshell Material, Plating | Insert Material [custom] | Insert Material [custom] | Primary Material | Material Flammability Rating | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 4 | Free Hanging (In-Line) | Plug Female Sockets | Industrial | 130 VAC 180 VDC | Keyed | Phosphor Bronze | Latch Lock | Silver | Stainless Steel | 5 A | Backshell Cable Clamp Strain Relief | Silver | 78.7 µin | 2 µm | Shielded | Nickel Zinc Alloy | Nylon | Polyamide (PA) | Metal | UL94 V-0 | 16 | -25 °C | 70 °C |
