PD-9512 Series

Catalog

12-PORT AT 60W NMS

Part	Input Connector	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Compliance	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Ports	Current - Output	Approval Agency	Power (Watts) - Per Port	Voltage - Output
Microchip Technology PD-9512G/ACDC/M	RJ45 (Data) Terminal Block (Power)	RJ45 (Data Power)	240 VAC	100 VAC	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	40 °C	0 °C	IEEE802.3af IEEE802.3at	57 V	54 V	Rack Mount	1.75 "	44.5 mm	274.3 mm	10.8 in	17.3 in	439.4 mm	12	1.26 A	CE	72 W

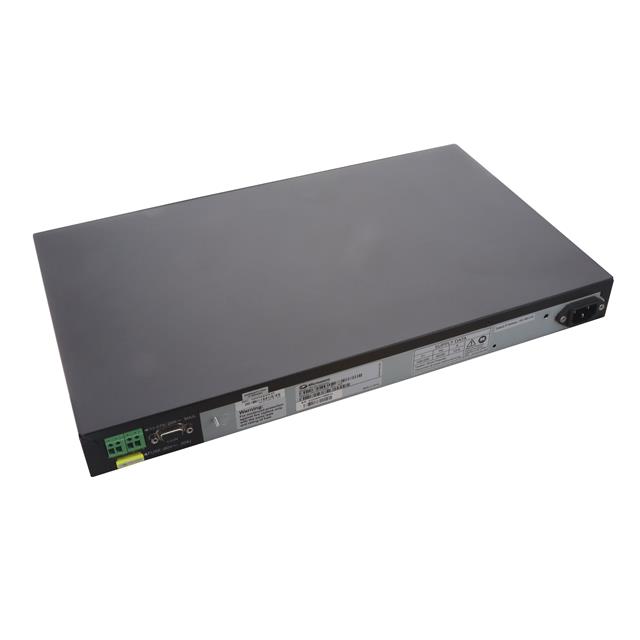

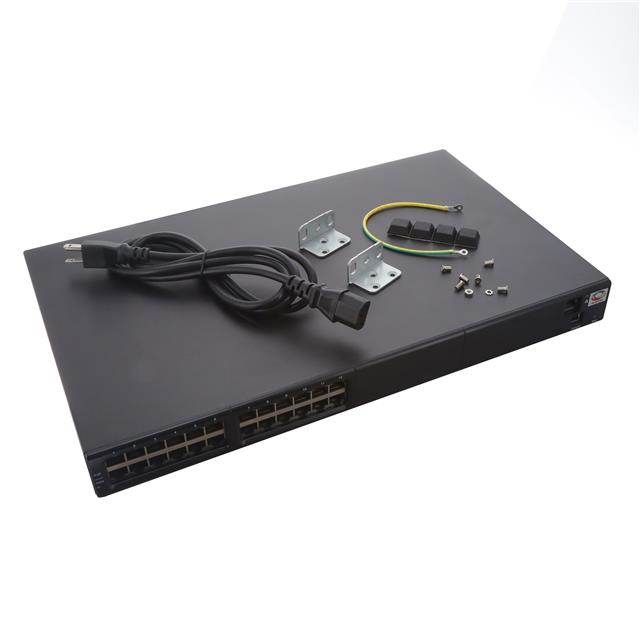

Microchip Technology PD-9512GC/AC-US	RJ45 (Data) Terminal Block (Power)	RJ45 (Data Power)	240 VAC	100 VAC	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	40 °C	0 °C	IEEE802.3af IEEE802.3at IEEE802.3bt			Rack Mount	1.75 "	44.5 mm	274.3 mm	10.8 in	17.3 in	439.4 mm	12	1.1 A	CE	60 W	55 V
