10030GE Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

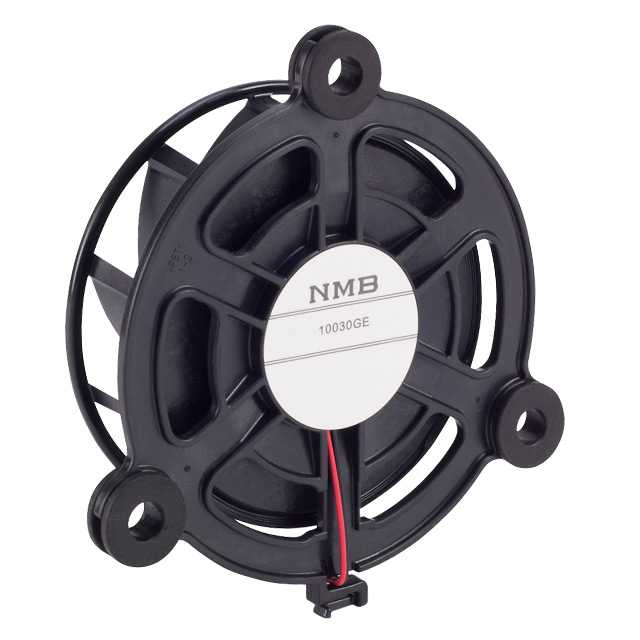

FAN AXIAL 100X30MM 12VDC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Termination | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [diameter] | Noise | Features | Power (Watts) | RPM | Bearing Type | Voltage - Rated | Width [y] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 70000 Hrs | Plastic | 150 mA | Plastic | 13.8 VDC | 7 V | 2 Wire Leads | Tubeaxial | 40 °C | -40 C | 0.2 in H2O | 49.8 Pa | Round | 100 mm | 35.5 dB | Auto Restart | 1.8 W | 2500 RPM | Ball | 12 VDC | 30 mm | 37.1 CFM | 1.04 mł/min |
