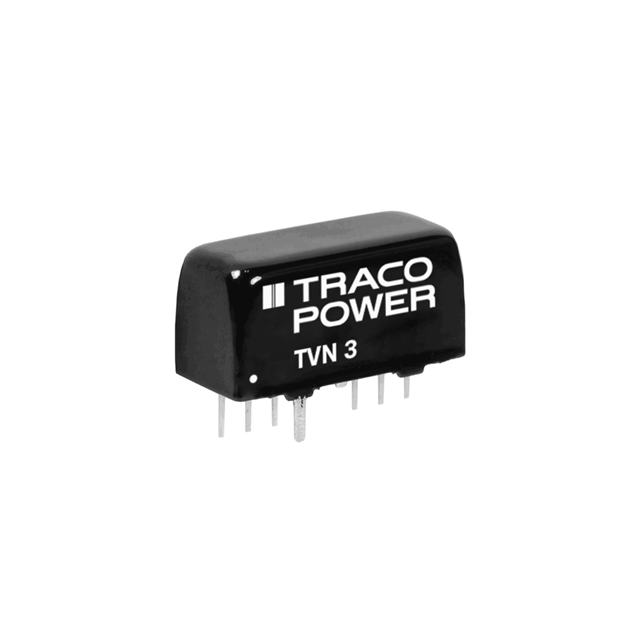

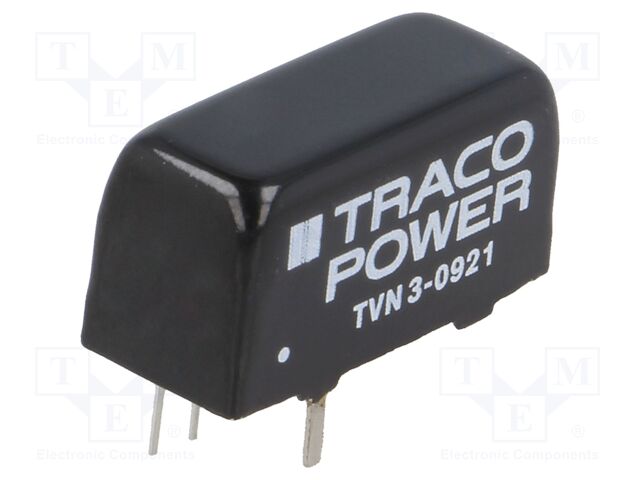

TVN 3 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 3.3V 2.3W
| Part | Features | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Applications | Voltage - Output 1 | Type | Number of Outputs | Power (Watts) | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 75 V | Through Hole | 36 V | 700 mA | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 74 % | ITE (Commercial) | 3.3 V | Isolated Module | 1 | 2.3 W | ||||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 18 V | Through Hole | 9 V | 250 mA | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 85 % | ITE (Commercial) | 12 V | Isolated Module | 1 | 3 W | ||||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 18 V | Through Hole | 9 V | 125 mA | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 84 % | ITE (Commercial) | 24 V | Isolated Module | 1 | 3 W | ||||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 36 V | Through Hole | 18 V | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 85 % | ITE (Commercial) | 15 V | Isolated Module | 2 | 3 W | -15 V | 100 mA | 100 mA | ||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 36 V | Through Hole | 18 V | 0.3 A | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 80 % | ITE (Commercial) | 5 V | Isolated Module | 2 | 3 W | -5 V | |||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 18 V | Through Hole | 9 V | 333 mA | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 80 % | ITE (Commercial) | 9 V | Isolated Module | 1 | 3 W | ||||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 75 V | Through Hole | 36 V | 0.3 A | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 79 % | ITE (Commercial) | 5 V | Isolated Module | 2 | 3 W | -5 V | |||
 Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 13.2 V | Through Hole | 4.5 V | 0.3 A | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 78 % | ITE (Commercial) | 5 V | Isolated Module | 2 | 3 W | -5 V | |||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 36 V | Through Hole | 18 V | 125 mA | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 84 % | ITE (Commercial) | 24 V | Isolated Module | 1 | 3 W | ||||
Traco Power | Remote On/Off SCP | 1.6 kV | 90 °C | -40 °C | 13.2 V | Through Hole | 4.5 V | 8-SIP Module 7 Leads | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | ITE (Commercial) | 12 V | Isolated Module | 2 | 3 W | -12 V | 125 mA |
