C4842 Series

Catalog

MULTI-PAIR 4COND 24AWG GRAY 500'

Part	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Shield Type	Usage	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Features	Length	Length	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Shield Material	Shield Coverage

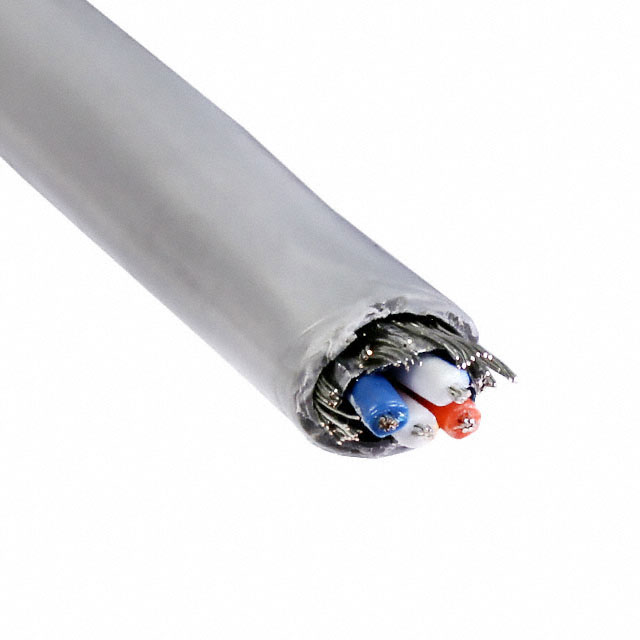

Prysmian Group C4842A.41.10	100 ft	30.5 m	7	32 AWG	24 AWG	Braid Foil	Computer	30 V	80 °C	-20 ░C	Gray	Low Capacitance	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Copper Tinned	4	0.813 mm	0.032 in	7.72 mm	0.304 in	Multi-Pair	Polyethylene (PE)
Prysmian Group C4842A.41.10	100 ft	30.5 m	7	32 AWG	24 AWG	Braid Foil	Computer	30 V	80 °C	-20 ░C	Gray	Low Capacitance	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Copper Tinned	4	0.813 mm	0.032 in	7.72 mm	0.304 in	Multi-Pair	Polyethylene (PE)	Copper Flexfoil® Tinned	90 % 100 %
