STH185 Series
Manufacturer: STMicroelectronics
Beta
⌘K

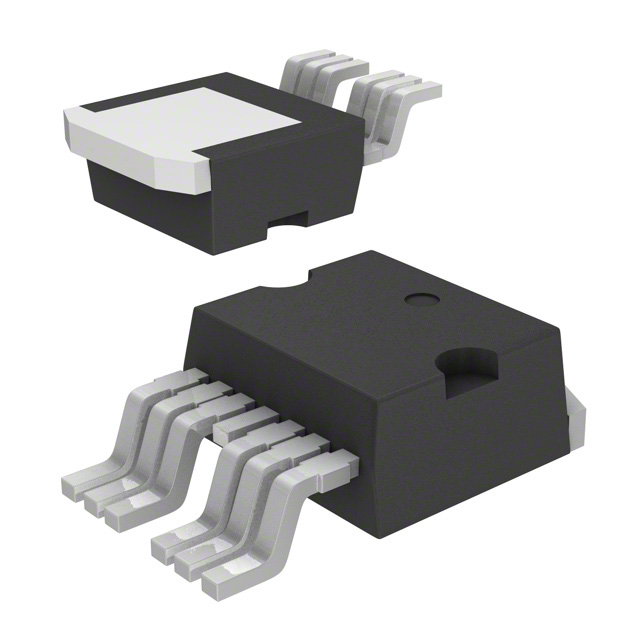

MOSFET N-CH 100V 180A H2PAK-6
| Part | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Supplier Device Package | Vgs(th) (Max) @ Id | Mounting Type | Rds On (Max) @ Id, Vgs | Power Dissipation (Max) | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Package / Case | Drain to Source Voltage (Vdss) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | N-Channel | MOSFET (Metal Oxide) | 180 A | 175 °C | -55 °C | Automotive | H2PAK-6 | 4 V | Surface Mount | 4.5 mOhm | 315 W | 20 V | 10 V | 6665 pF | D2PAK (6 Leads + Tab) TO-263-7 | 100 V | AEC-Q101 |
