HMC1049-Die Series

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Catalog

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Part	Mounting Type	Test Frequency	Supplier Device Package	Gain	RF Type	Voltage - Supply	Frequency [Max]	Frequency [Min]	P1dB	Package / Case	Current - Supply	Noise Figure	Test Frequency [Min]	Test Frequency [Max]
Analog Devices HMC1049	Surface Mount	1 GHz	Die	16.5 dBi	VSAT	7 V	20 GHz	300 MHz	15 dBm	Die	70 mA	2.7 dB
Analog Devices HMC1049-SX	Surface Mount		Die	16 dB	General Purpose	7 V	20 GHz	300 MHz	13 dBm	Die	70 mA	1.7 dB

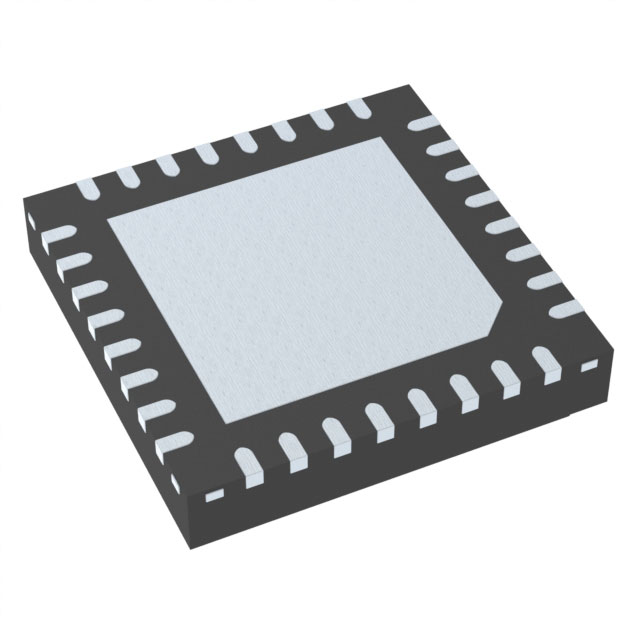

Analog Devices HMC1049SCPZ-EP-R7	Surface Mount		32-LFCSP-WQ (5x5)	16 dB	Radar SATCOM VSAT		20 GHz	300 MHz	16 dBm	32-WFQFN Exposed Pad CSP	70 mA	3.5 dB	300 MHz	1 GHz

Catalog

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Key Features

• Low noise figure: 1.8 dB

• P1dB output power: 14.5 dBm

• PSAToutput power: 17.5 dBm

• High gain: 15 dB

• Output IP3: 29 dBm

• Supply voltage: VDD= 7 V at 70 mA

• 50 Ω matched input/output (I/O)

• 32-lead, 5 mm × 5 mm LFCSP package: 25 mm2

• DownloadHMC1049SCPZ-EP data sheet(pdf)

• Extended industrial temperature range: −55°C to +105°C

• Controlled manufacturing baseline

• 1 assembly/test site

• 1 fabrication site

• Product change notification

• Qualification data available on request

• V62/19611-01XE DSCC Drawing Number

Description

The HMC1049 is a GaAs MMIC low noise amplifier (LNA) that operates between 0.3 GHz and 20 GHz. This LNA provides 16 dB of small signal gain, a 1.7 dB noise figure, and an Output IP3 of 27 dBm, requiring only 70 mA from a 7 V supply. The P1dB output power of 16 dBm enables the LNA to function as a local oscillator (LO) driver for balanced, I/Q or image rejection mixers. VDDcan be applied to Pad 2 with VDD= 7 V or to Pad 4 with VDD= 4 V. Pad 4 requires a bias tee. The HMC1049 is also internally matched to 50 Ω for ease of integration into multichip modules (MCMs). All data is taken with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mil) length.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosMilitary and spaceTest instrumentation
