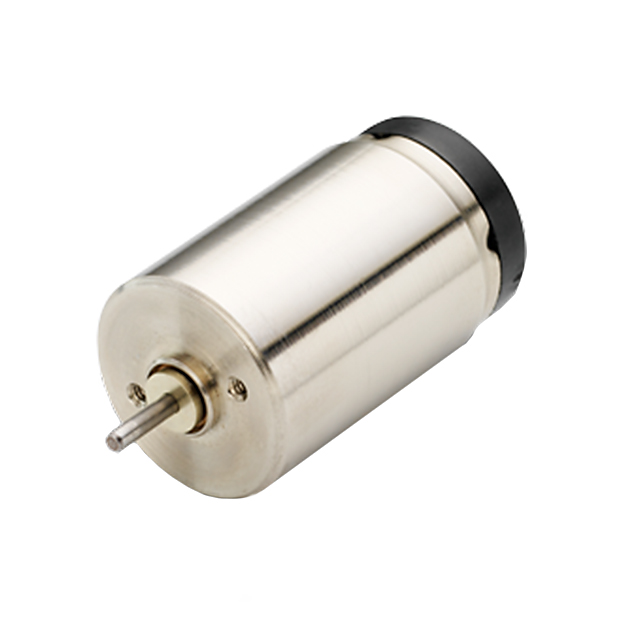

17N78210 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 12V
| Part | Weight [custom] | Weight [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | RPM | Voltage - Rated | Function | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | Termination Style | Power - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Motor Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 27.22 g | 0.06 lb | 0.69 oz-in | 4.89 mNm | 7.5 mm | 0.295 " | 10000 RPM | 12 VDC | Standard | Round | 0.669 in | 17 mm | 1.5 mm | 0.059 in | DC Motor | Solder Tab | 3.1 W | 85 °C | -30 ░C | Brushed | 10 mm | 0.394 in |
