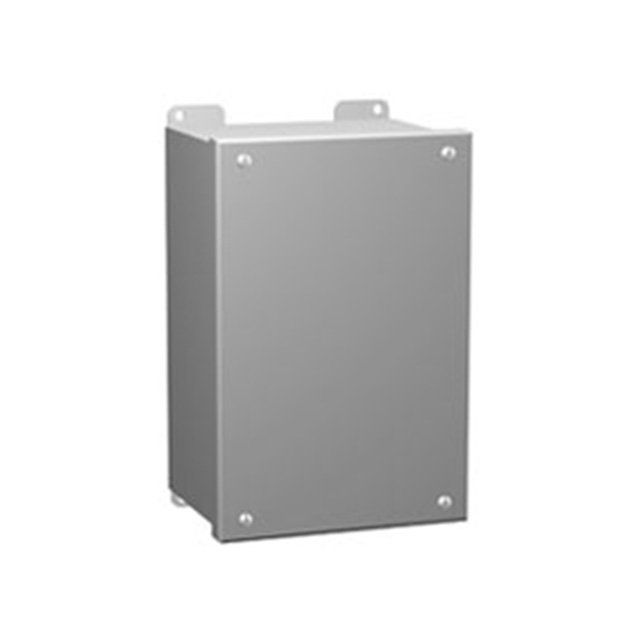

1438 Series

Catalog

BOX STEEL GRAY 10"L X 4"W

Part	Weight [custom]	Weight [custom]	Container Type	Thickness	Ratings	Color	Area (L x W)	Area (L x W)	Height	Height	Design	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight
Hammond Manufacturing 1438D	2.3 kg	5 lbs	Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	40 in²	258 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	4 "	254 mm	101.6 mm	10 in
Hammond Manufacturing 1438C	2.3 kg	5 lbs	Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray			4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	4 "	203.2 mm		8 in	101.6 mm	206 cm²	32 in²
Hammond Manufacturing 1438B	1.8 kg	4 lbs	Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	24 in²	155 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	4 "	152.4 mm		6 "	101.6 mm
Hammond Manufacturing 1438S			Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	126 in²	813 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	10.75 in	298.45 mm		11.75 in	273.05 mm			11 lbs	5 kg
Hammond Manufacturing 1438A			Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	16 in²	103 cm²	4.75 in	120.65 mm	Cover Included	Metal Steel	4 "	101.6 mm		4 "	101.6 mm			3.1 lbs	1.4 kg
Hammond Manufacturing 1438H	2.3 kg	5 lbs	Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	59.4 in²	383 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	6.25 in	241.3 mm		9.5 in	158.75 mm
Hammond Manufacturing 1438K			Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	80.8 in²	521 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	8.5 in	241.3 mm		9.5 in	215.9 mm			7 lbs	3.2 kg
Hammond Manufacturing 1438O			Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray			4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	8.5 in	298.45 mm	215.9 mm	11.75 in				8 lbs	3.6 kg
Hammond Manufacturing 1438F	2.3 kg	5 lbs	Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	46.9 in²	303 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	6.25 in	190.5 mm		7.5 in	158.75 mm

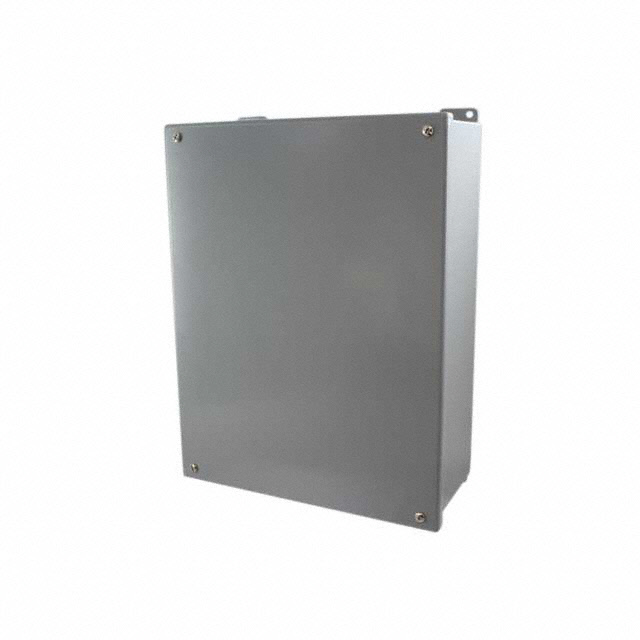

Hammond Manufacturing 1438V			Box	14 Gauge	IP54 NEMA 12 NEMA 13 UL-508	Gray	151 in²	974 cm²	4.75 in	120.65 mm	Hinged Door Lid	Metal Steel	10.75 in	355.6 mm	273.05 mm	14 "				11 lbs	5 kg
