LF07WBP Series
Manufacturer: Hirose Electric USA, Inc.
Beta
⌘K
CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Contact Finish - Mating | Primary Material | Mounting Type | Connector Type | Backshell Material, Plating | Applications | Shell Finish | Insert Material | Fastening Type | Shell Size - Insert | Material Flammability Rating | Shielding | Features | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Ingress Protection | Shell Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Number of Positions | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

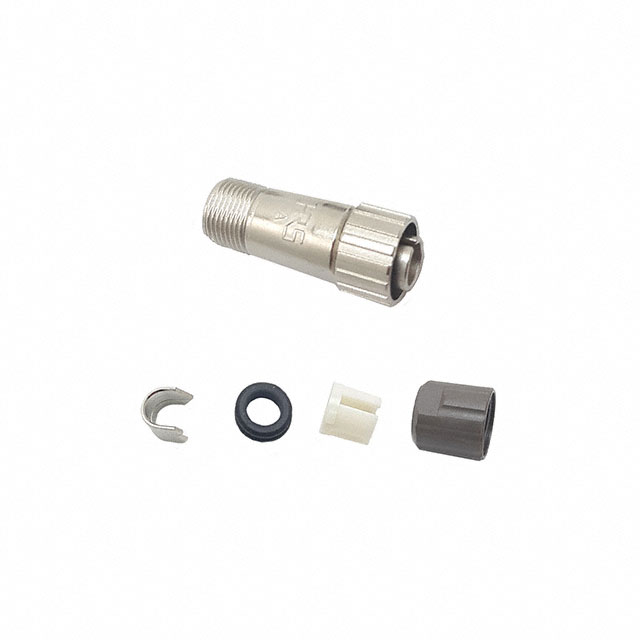

 Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Male Pins Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.203 Ám | 8 Áin | Keyed | 6 | 30 VAC 42 VDC | ||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||

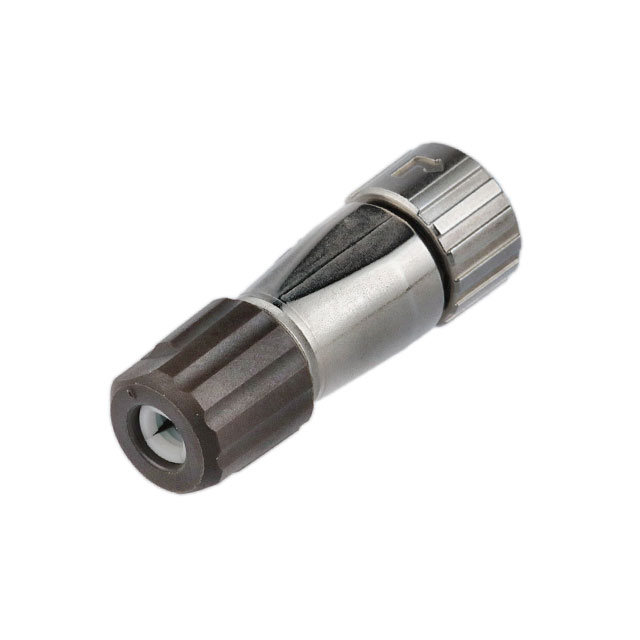

 Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Female Sockets Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.2 Ám | 7.87 Áin | Keyed | 6 | 30 VAC 42 VDC | 5 mm | 0.197 in |

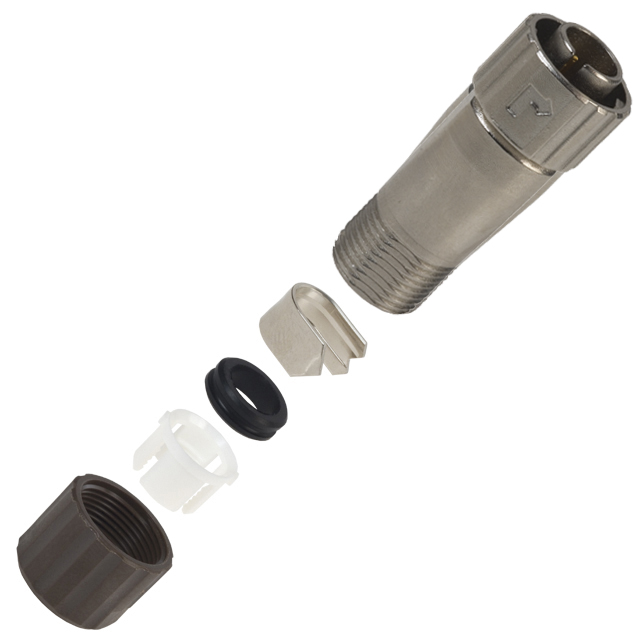

 Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Male Pins Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.2 Ám | 7.87 Áin | Keyed | 6 | 30 VAC 42 VDC | 5 mm | 0.197 in |

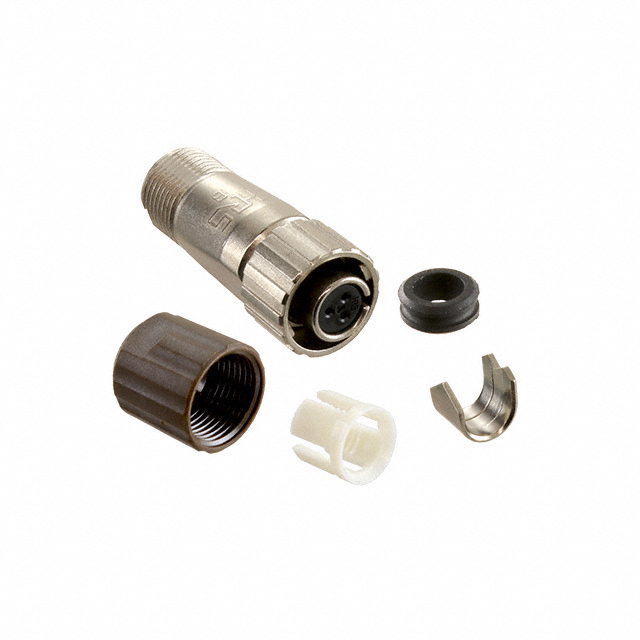

 Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Female Sockets Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 5 A | 0.2 Ám | 7.87 Áin | Keyed | 125 VAC 175 VDC | 5 mm | 0.197 in |
