DF60R Series

Catalog

CONN PLUG HSG 2POS 10.16MM

Part	Pitch	Pitch	Mounting Type	Fastening Type	Number of Rows	Insulation Material	Contact Termination	Color	Contact Type	Connector Type	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Termination	Style	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Contact Shape	Applications	Insulation Color	Contact Length - Post	Contact Length - Post

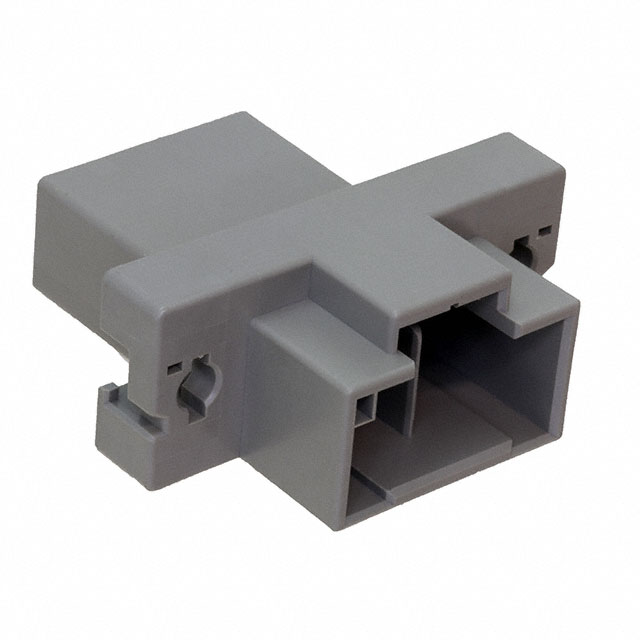

Hirose Electric Co Ltd DF60R-2EP-10.16C	10.16 mm	0.4 in	Free Hanging (In-Line)	Latch Holder	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Gray	Blade Pin	Plug	2	Mounting Flange	-55 C	105 ░C
Hirose Electric Co Ltd DF60R-2P-10.16DS(26)
Hirose Electric Co Ltd DF60R-2P-10.16DSA(45)			Through Hole	Latch Holder	1	Polybutylene Terephthalate (PBT) Glass Filled			Male Pin	Header	2	Board Guide	-55 C	105 ░C	0.4 in	10.16 mm	3.81 mm	0.15 in	Shrouded - 4 Wall	All	Tin	UL94 V-0	0.846 "	21.5 mm	Copper	Solder	Board to Board Cable	Gold	1000 VDC	Varies by Wire Gauge	Square
Hirose Electric Co Ltd DF60R-3P-10.16DS(26)			Right Angle Through Hole	Latch Lock	1	Polybutylene Terephthalate (PBT) Glass Filled			Male Pin	Header		Board Guide	-55 C	125 °C	0.4 in	10.16 mm			Shrouded - 4 Wall	All		UL94 V-0			Copper	Solder	Board to Board Cable	Gold	1000 VDC		Square	General Purpose	Gray	0.142 in	3.6 mm
